#include "UBI_SDK.h"
#include "stdint.h"
#include "stdbool.h"

Include dependency graph for a_port.h:

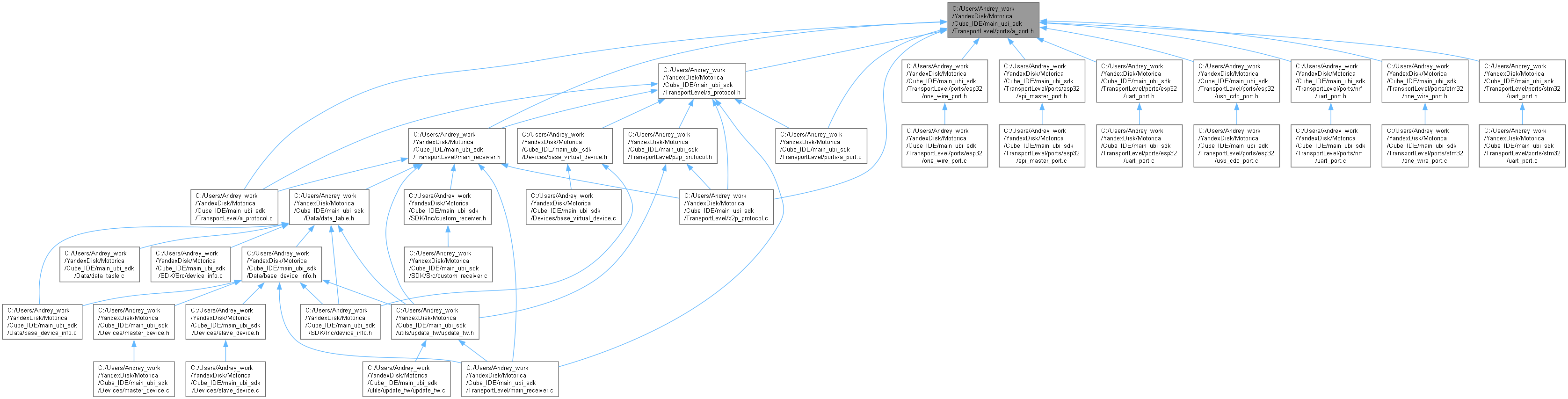

This graph shows which files directly or indirectly include this file:

Data Structures
struct	port_struct

struct	base_port_struct

Typedefs
typedef uint8_t (	get_tx_buffer_t) (void *init_str)

typedef uint8_t (	get_rx_buffer_t) (void *init_str)

typedef void(*	write_direct_t) (void port_str, uint8_t buf, uint16_t size)

typedef void(*	write_and_time_receive_t) (void port_str, uint8_t buf, uint16_t size, uint32_t time_ms)

typedef int(*	receive_data_t) (void *port_str)

typedef void(*	base_port_receive_bridge_func_t) (void port_str, uint8_t buf, uint32_t size)

typedef void(*	slave_answer_func_t) (void port_str, uint8_t buf, uint32_t size)

typedef void(*	receive_to_current_device_func_t) (void port_str, uint8_t buf, uint32_t size)

typedef void(*	receive_to_another_device_func_t) (void port_str, uint8_t buf, uint32_t size)

typedef void(*	get_receive_buffer_size_t) (void port_str, uint32_t size)

typedef void(*	read_data_buffer_t) (void port_str, uint8_t out_buf, uint32_t out_buf_size, uint32_t *read_bytes_size)

typedef void(*	start_receive_task_t) (void *port_str)

typedef void(*	processing_data_t) (void *port_str, uint32_t len)

typedef void(*	wait_receive_t) (void *port_str, uint32_t rx_buf_offset, uint32_t len)

typedef void(*	wait_tx_finish_t) (void *port_str)

typedef void(*	wait_receive_time_t) (void *port, uint32_t time_ms)

typedef uint32_t(*	wait_receive_time_blocked_t) (void *port, uint32_t offset, uint32_t len, uint32_t time_ms)

typedef void(*	stop_receive_t) (void *port_str)

typedef void(*	set_receiver_mode_t) (void *port_str, port_receive_mode_enum mode)

typedef uint32_t(*	GetTransmitTime_us_t) (void *port_str, uint32_t num_bytes)

typedef void(*	close_port_callback_t) (void *protocol_str)

Enumerations
enum	ports_enum { UBI_PE_ONE_WIRE_BUS = 0 , UBI_PE_UART_BUS , UBI_PE_SPI_BUS , UBI_PE_USB , UPI_PE_BLE }

enum	port_type_enum { UBI_PTE_FULL_DUPLEX = 0 , UBI_PTE_HALF_DUPLEX }

enum	port_receive_mode_enum { PORT_RECEIVER_IRQ_MODE = 0 , PORT_RECEIVER_COLLECT_MODE }

Functions
void	base_port_init (base_port_struct *port_str)

void	base_port_ubi4_bus_receive_data (base_port_struct *port_str)

void	base_port_receive_bridge (base_port_struct port_str, uint8_t buf, uint32_t size)

void	base_port_slave_answer (base_port_struct port_str, uint8_t buf, uint32_t size)

void	base_port_receive_to_current_device (base_port_struct port_str, uint8_t buf, uint32_t size)

void	base_port_get_receive_buffer_size (base_port_struct port_str, uint32_t size)

void	base_port_read_data_buffer (base_port_struct port_str, uint8_t out_buf, uint32_t out_buf_size, uint32_t *read_bytes_size)

uint8_t *	port_get_tx_buffer (base_port_struct *port_str)

uint8_t *	port_get_rx_buffer (base_port_struct *port_str)

Typedef Documentation

◆ base_port_receive_bridge_func_t

typedef void(* base_port_receive_bridge_func_t) (void *port_str, uint8_t *buf, uint32_t size)

◆ close_port_callback_t

typedef void(* close_port_callback_t) (void *protocol_str)

◆ get_receive_buffer_size_t

typedef void(* get_receive_buffer_size_t) (void *port_str, uint32_t *size)

◆ get_rx_buffer_t

typedef uint8_t *(* get_rx_buffer_t) (void *init_str)

◆ get_tx_buffer_t

typedef uint8_t *(* get_tx_buffer_t) (void *init_str)

◆ GetTransmitTime_us_t

typedef uint32_t(* GetTransmitTime_us_t) (void *port_str, uint32_t num_bytes)

◆ processing_data_t

typedef void(* processing_data_t) (void *port_str, uint32_t len)

◆ read_data_buffer_t

typedef void(* read_data_buffer_t) (void *port_str, uint8_t *out_buf, uint32_t out_buf_size, uint32_t *read_bytes_size)

◆ receive_data_t

typedef int(* receive_data_t) (void *port_str)

◆ receive_to_another_device_func_t

typedef void(* receive_to_another_device_func_t) (void *port_str, uint8_t *buf, uint32_t size)

◆ receive_to_current_device_func_t

typedef void(* receive_to_current_device_func_t) (void *port_str, uint8_t *buf, uint32_t size)

◆ set_receiver_mode_t

typedef void(* set_receiver_mode_t) (void *port_str, port_receive_mode_enum mode)

◆ slave_answer_func_t

typedef void(* slave_answer_func_t) (void *port_str, uint8_t *buf, uint32_t size)

◆ start_receive_task_t

typedef void(* start_receive_task_t) (void *port_str)

◆ stop_receive_t

typedef void(* stop_receive_t) (void *port_str)

◆ wait_receive_t

typedef void(* wait_receive_t) (void *port_str, uint32_t rx_buf_offset, uint32_t len)

◆ wait_receive_time_blocked_t

typedef uint32_t(* wait_receive_time_blocked_t) (void *port, uint32_t offset, uint32_t len,uint32_t time_ms)

◆ wait_receive_time_t

typedef void(* wait_receive_time_t) (void *port, uint32_t time_ms)

◆ wait_tx_finish_t

typedef void(* wait_tx_finish_t) (void *port_str)

◆ write_and_time_receive_t

typedef void(* write_and_time_receive_t) (void *port_str, uint8_t *buf, uint16_t size, uint32_t time_ms)

◆ write_direct_t

typedef void(* write_direct_t) (void *port_str, uint8_t *buf, uint16_t size)

Enumeration Type Documentation

◆ port_receive_mode_enum

enum port_receive_mode_enum

Enumerator
PORT_RECEIVER_IRQ_MODE
PORT_RECEIVER_COLLECT_MODE

◆ port_type_enum

enum port_type_enum

Enumerator
UBI_PTE_FULL_DUPLEX
UBI_PTE_HALF_DUPLEX

◆ ports_enum

enum ports_enum

Enumerator
UBI_PE_ONE_WIRE_BUS
UBI_PE_UART_BUS
UBI_PE_SPI_BUS
UBI_PE_USB
UPI_PE_BLE

Function Documentation

◆ base_port_get_receive_buffer_size()

void base_port_get_receive_buffer_size	(	base_port_struct *	port_str,
		uint32_t *	size )

◆ base_port_init()

void base_port_init ( base_port_struct * port_str )

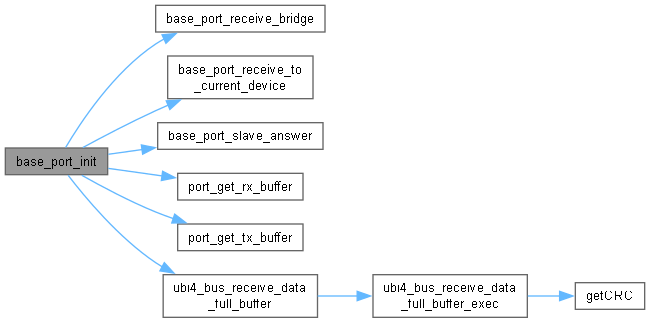

Here is the call graph for this function:
