base_memory_driver.h File Reference

#include "stdint.h"
#include "stdbool.h"

Include dependency graph for base_memory_driver.h:

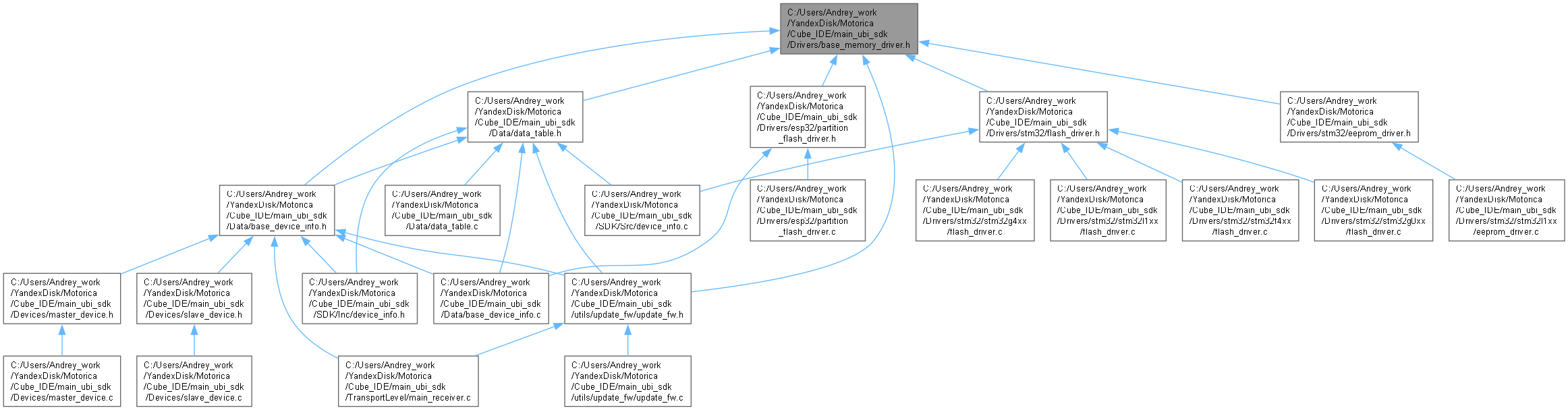

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ram_buffer_info_struct
struct	base_memory_driver_struct

Macros
#define	ROUND_MEMORY_CELL_SIZE(_sizeof_, _base_)

Typedefs
typedef uint32_t(*	read32_t) (void *memory_driver, uint32_t Address)
typedef uint16_t(*	read16_t) (void *memory_driver, uint32_t Address)
typedef uint8_t(*	read8_t) (void *memory_driver, uint32_t Address)
typedef bool(*	write_bytes_t) (void *memory_driver, uint32_t Address, uint8_t *Buf, uint32_t Size)
typedef void *(*	smart_write_t) (void *memory_driver, uint32_t Address, uint8_t *Buf, uint32_t Size, memory_driver_status_enum *status)
typedef bool(*	compare_memory_val_t) (void *memory_driver, uint32_t Address, uint8_t *val, uint32_t val_size)
typedef bool(*	memory_region_is_free_t) (void *memory_driver, uint32_t Address, uint32_t Len)
typedef void(*	clear_sector_t) (void *memory_driver, uint32_t Address, uint32_t size_clear)
typedef void(*	clear_segment_t) (void *memory_driver, uint32_t Address, uint32_t Len)
typedef void(*	finish_used_flash_t) (void *memory_driver)
typedef void *(*	get_pointer_t) (void *memory_driver, uint32_t Address, int size, memory_driver_status_enum *status)
typedef void(*	read_data_t) (void *memory_driver, uint32_t Address, uint8_t *readBuffer, uint32_t len, memory_driver_status_enum *status)
typedef void(*	clear_flash_for_fw_t) (void *memory_driver, uint32_t Address, uint32_t size_clear)
typedef bool(*	Write_FW_t) (void *memory_driver, uint32_t Address, uint8_t *Buf, uint32_t Size, uint32_t General_Size, uint32_t FW_Size)

Enumerations
enum	memory_driver_status_enum {   MDSE_OK = 0 , MDSE_ERROR , MDSE_OWERWRITING_NOT_REQUERED , MDSE_DATA_CONTAINE_IN_RAM_BUFFER ,   MDSE_FLASH_BUFFER_BUSY }
enum	memory_type_enum {   MTE_INTERNAL_FLASH = 0 , MTE_INTERNAL_EEPROM , MTE_INTERNAL_RAM , MTE_EXTERNAL_FLASH ,   MTE_EXTERNAL_EEPROM , MTE_EXTERNAL_RAM }

Macro Definition Documentation

ROUND_MEMORY_CELL_SIZE

#define ROUND_MEMORY_CELL_SIZE	(		_sizeof_,
			_base_ )

Value:

(_sizeof_%_base_ ? ((_sizeof_/_base_)*_base_+_base_) : (_sizeof_))

Typedef Documentation

clear_flash_for_fw_t

typedef void(* clear_flash_for_fw_t) (void *memory_driver, uint32_t Address, uint32_t size_clear)

clear_sector_t

typedef void(* clear_sector_t) (void *memory_driver, uint32_t Address, uint32_t size_clear)

clear_segment_t

typedef void(* clear_segment_t) (void *memory_driver, uint32_t Address, uint32_t Len)

compare_memory_val_t

typedef bool(* compare_memory_val_t) (void *memory_driver, uint32_t Address, uint8_t *val, uint32_t val_size)

finish_used_flash_t

typedef void(* finish_used_flash_t) (void *memory_driver)

get_pointer_t

typedef void *(* get_pointer_t) (void *memory_driver, uint32_t Address, int size, memory_driver_status_enum *status)

memory_region_is_free_t

typedef bool(* memory_region_is_free_t) (void *memory_driver, uint32_t Address, uint32_t Len)

read16_t

typedef uint16_t(* read16_t) (void *memory_driver, uint32_t Address)

read32_t

typedef uint32_t(* read32_t) (void *memory_driver, uint32_t Address)

read8_t

typedef uint8_t(* read8_t) (void *memory_driver, uint32_t Address)

read_data_t

typedef void(* read_data_t) (void *memory_driver, uint32_t Address, uint8_t *readBuffer, uint32_t len, memory_driver_status_enum *status)

smart_write_t

typedef void *(* smart_write_t) (void *memory_driver, uint32_t Address, uint8_t *Buf, uint32_t Size, memory_driver_status_enum *status)

write_bytes_t

typedef bool(* write_bytes_t) (void *memory_driver, uint32_t Address, uint8_t *Buf, uint32_t Size)

Write_FW_t

typedef bool(* Write_FW_t) (void *memory_driver, uint32_t Address, uint8_t *Buf, uint32_t Size, uint32_t General_Size, uint32_t FW_Size)

Enumeration Type Documentation

memory_driver_status_enum

enum memory_driver_status_enum

Enumerator
MDSE_OK
MDSE_ERROR
MDSE_OWERWRITING_NOT_REQUERED
MDSE_DATA_CONTAINE_IN_RAM_BUFFER
MDSE_FLASH_BUFFER_BUSY

memory_type_enum

enum memory_type_enum

Enumerator
MTE_INTERNAL_FLASH
MTE_INTERNAL_EEPROM
MTE_INTERNAL_RAM
MTE_EXTERNAL_FLASH
MTE_EXTERNAL_EEPROM
MTE_EXTERNAL_RAM
