#include "stdint.h"
#include "stdbool.h"
#include "utils/static_conteiner.h"

Include dependency graph for base_parameter.h:

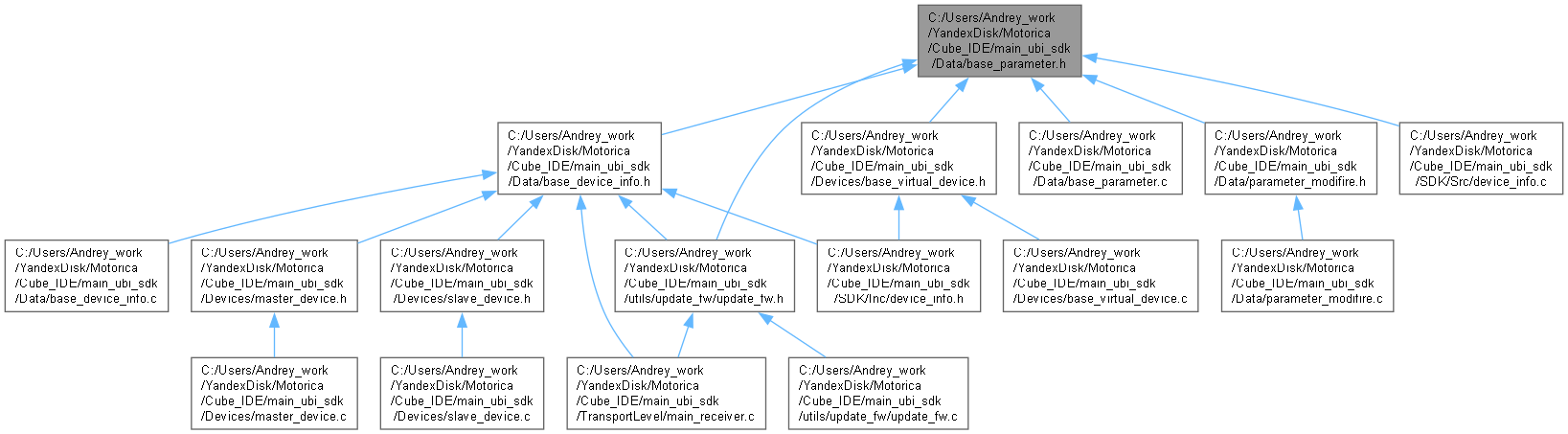

This graph shows which files directly or indirectly include this file:

Data Structures
union	u_ble_uuid

struct	param_addinfo_custom_ble_char_struct

struct	base_parameter_addinfoseg_struct
	Верхнеуровневая структура addinfo (в основном виджета, но не только) More...

struct	base_parameter_info_struct
	Дочерняя структура base_parameter_struct, содержит информацию о параметре More...

struct	param_addinfo_read_data_table_struct

struct	StructArrayAddInfo_struct

struct	StructArray_write_item_header_struct

struct	dependence_info_struct

struct	enable_function_struct

struct	base_parameter_pointers_struct
	Дочерняя структура base_parameter_struct, содержит указатели и колбеки More...

struct	base_parameter_struct
	Верхнеуровневая струткура декларации параметра More...

struct	parameter_consumer_array_struct

struct	dependence_info_array_struct

struct	parameter_manager_struct

struct	parameter_stream_filter_struct

struct	external_device_parameter_stream__struct

Typedefs
typedef void(*	change_notification_callback_t) (void param, uint8_t newVal)

typedef void(*	tx_notificaion_callback_t) (void *param)

typedef void(*	pre_read_callback_t) (void *param)

typedef void(*	pre_read_data_transfer_callback_t) (void param, uint8_t args, uint16_t size)

Enumerations
enum	parameter_addinfo_type_enum { PAITE_UNKNOW = 0 , PAITE_BLE_CUSTOM_CHAR = 1 , PAITE_BLE_AUTO_CHAR = 2 , PAITE_BLE_CUSTOM_CHAR_STRUCT_ARRAY_ITEM = 3 , PAITE_BLE_AUTO_CHAR_STRUCT_ARRAY_ITEM = 4 , PAITE_WIDGET = 5 , PAITE_VALUE_LIMIT_MIN_MAX = 6 , PAITE_READ_DATA_TABLE_SLOT = 7 , PAITE_ADD_PARAM_TO_WIDGET = 8 }

enum	ble_uuid_len_enum { BULE_LEN_16 = 0 , BULE_LEN_32 , BULE_LEN_128 }

enum	parameter_type_enum { PARTE_UNKNOW , PARTE_BOOL_TYPE , PARTE_BOOL_ARRAY_TYPE , PARTE_BOOL_MAP_TYPE , PARTE_INT32_TYPE , PARTE_INT32_ARRAY_TYPE , PARTE_INT32_MAP_TYPE , PARTE_INT16_TYPE , PARTE_INT16_ARRAY_TYPE , PARTE_INT16_MAP_TYPE , PARTE_INT8_TYPE , PARTE_INT8_ARRAY_TYPE , PARTE_INT8_MAP_TYPE , PARTE_UINT32_TYPE , PARTE_UINT32_ARRAY_TYPE , PARTE_UINT32_MAP_TYPE , PARTE_UINT16_TYPE , PARTE_UINT16_ARRAY_TYPE , PARTE_UINT16_MAP_TYPE , PARTE_UINT8_TYPE , PARTE_UINT8_ARRAY_TYPE , PARTE_UINT8_MAP_TYPE , PARTE_FLOAT_TYPE , PARTE_FLOAT_ARRAY_TYPE , PARTE_FLOAT_MAP_TYPE , PARTE_STRUCT_TYPE , PARTE_STRUCT_ARRAY_TYPE , PARTE_STRUCT_MAP_TYPE , PARTE_FIX_LEN_CHAR_TYPE , PARTE_VAR_LEN_CHAR_TYPE , PARTE_FIX_DATA_TRANSFER_TYPE , PARTE_NUM }
	Тип передаваемого параметра. Содержится в base_parameter_info_struct.type. More...

enum	parameter_dependence_type_enum { PDTE_UNKNOW = 0 , PDTE_EXTERNAL_DEVICE_PARAMETER_STREAM }

enum	parameter_save_setting_enum { PSSE_DONT_SAVE = 0 , PSSE_SAVE }

enum	parameter_synchronization_direction_enum { PSDE_MASTER_TO_SLAVE = 0 , PSDE_SLAVE_TO_MASTER , PSDE_BIDIRECTIONAL , PSDE_BIDIRECTIONAL_TWO_PARAMETERS }

enum	parameter_synchronization_type_enum { PSTE_READ_ONLY = 0 , PSTE_WRITE_ONLY , PSTE_STREAMING , PSTE_NOTIFICATION , PSTE_READ_WRITE }

enum	parameter_link_type_enum { PLTE_AUTO = 0 , PLTE_DYNAMIC , PLTE_NO_LINK }

enum	parameter_limite_type_enum { PLTE_LIMIT_NO_LIMIT = 0 , PLTE_LIMIT_BY_TYPE = 1 , PLTE_LIMIT_CUSTOM = 2 , PLTE_LIMIT_100 = 3 , PLTE_LIMIT_NUM }

enum	parameter_request_optimisation_enum { PROE_REGULAR_STREAM = 0 , PROE_ACTIVATED_STREAM = 1 }
	Режим стрима параметра More...

enum	parameter_enable_external_stream_enum { PEESE_DEFAULT_STREAM_MODE = 0 , PEESE_ACTIVATED_STREAM = 1 }

enum	StructArray_write_command_enum { SAWCE_ERROR = 0 , SAWCE_ITEM_WRITE }

Functions
void	init_parameter_manager (parameter_manager_struct *param_manager, base_parameter_struct parameters, uint8_t param_num)

void	parameter_write_data (parameter_manager_struct param_manager, uint8_t data_code, uint8_t instance, void data)

void	parameter_write_data_obj (parameter_manager_struct param_manager, base_parameter_struct param, uint8_t *data)

void	parameter_write_data_info (parameter_manager_struct param_manager, base_parameter_info_struct param_info, void *data)

void	parameter_write_master_to_slave_simple (base_parameter_struct param, uint8_t Data)

void	parameter_write_master_to_slave_struct_array (base_parameter_struct param, uint8_t Data)

void	parameter_write_master_to_slave_data_transfer (base_parameter_struct param, uint8_t Data, uint16_t size)

void	create_parameter_consumer_array (base_parameter_pointers_struct *param_pointers, uint8_t size)

void	parameter_add_consumer (base_parameter_pointers_struct *source_param_pointers, base_parameter_struct param)

bool	parameter_add_dependence (base_parameter_pointers_struct param_pointers, uint8_t type, uint8_t instance, void dependence_pointer, uint32_t dependence_size)

Typedef Documentation

◆ change_notification_callback_t

typedef void(* change_notification_callback_t) (void *param, uint8_t *newVal)

◆ pre_read_callback_t

typedef void(* pre_read_callback_t) (void *param)

◆ pre_read_data_transfer_callback_t

typedef void(* pre_read_data_transfer_callback_t) (void *param, uint8_t *args, uint16_t size)

◆ tx_notificaion_callback_t

typedef void(* tx_notificaion_callback_t) (void *param)

Enumeration Type Documentation

◆ ble_uuid_len_enum

enum ble_uuid_len_enum

Enumerator
BULE_LEN_16
BULE_LEN_32
BULE_LEN_128

◆ parameter_addinfo_type_enum

enum parameter_addinfo_type_enum

Enumerator
PAITE_UNKNOW
PAITE_BLE_CUSTOM_CHAR
PAITE_BLE_AUTO_CHAR
PAITE_BLE_CUSTOM_CHAR_STRUCT_ARRAY_ITEM
PAITE_BLE_AUTO_CHAR_STRUCT_ARRAY_ITEM
PAITE_WIDGET
PAITE_VALUE_LIMIT_MIN_MAX
PAITE_READ_DATA_TABLE_SLOT
PAITE_ADD_PARAM_TO_WIDGET
