a_protocol.h File Reference

#include "TransportLevel/ports/a_port.h"
#include "TransportLevel/data_sniffer.h"
#include "utils/custom_heap.h"
#include "TransportLevel/a_protocol_struct.h"
#include "utils/static_conteiner.h"
#include "utils/base_soft_timer.h"
#include "stdint.h"

Include dependency graph for a_protocol.h:

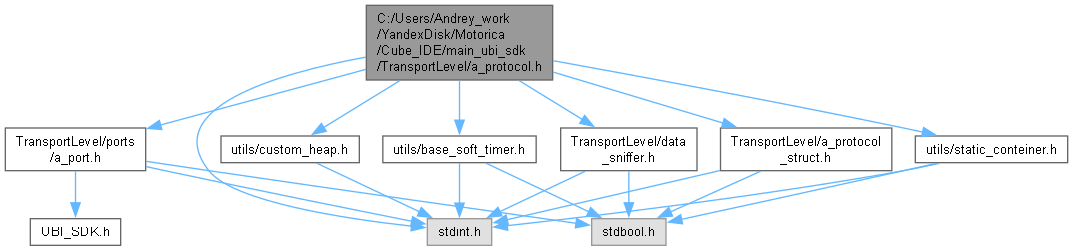

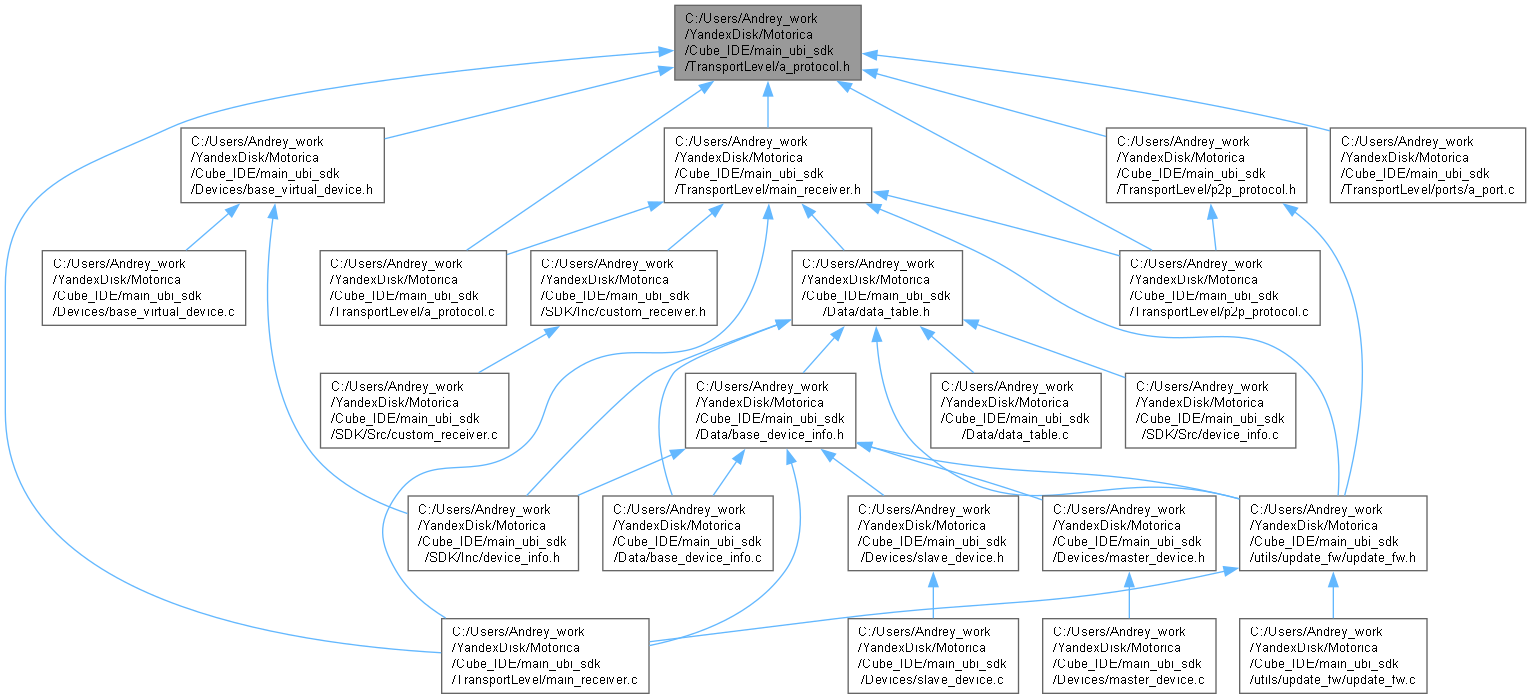

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	device_address_struct
union	u_device_address
struct	var_len_payload_struct
union	u_bus_res_payload
struct	base_bus_transmit_settings_struct
struct	bus_main_module_header
struct	base_protocol_data_segment_struct
struct	ubi4_bus_package_info_struct
struct	ubi4_bridge_request_info_struct
struct	bridge_protocol_info_struct
struct	base_protocol_queue_segment_struct
struct	ubi4_bus_protocol_obj_struct
struct	ubi4_bus_protocol_init_struct

Typedefs
typedef void(*	receive_data_func_t) (void *protocol_str)
typedef void(*	receive_bridge_func_t) (void *port_str, uint8_t *buf, uint32_t size)
typedef void(*	slave_answer_func_t) (void *protocol_str, uint8_t *buf, uint32_t size)
typedef void(*	remove_pack_info_t) (void *protocol_str, void *pack_info)
typedef base_protocol_data_segment_struct *(*	get_data_segment_func_t) (void *protocol_str, uint16_t size)
typedef protocol_parce_status_enum(*	get_data_from_package_t) (void *protocol, uint8_t *buf, uint32_t size, ubi4_bus_package_info_struct *pack_info_out, uint8_t **buf_out, uint32_t *len)
typedef void(*	receive_to_current_device_func_t) (void *protocol_str, uint8_t *buf, uint32_t size)
typedef void(*	receive_to_another_device_func_t) (void *protocol_str, uint8_t *buf, uint32_t size)
typedef void(*	protocol_answer_func_t) (void *protocol_str, void *pack_info, uint8_t *data_buf, uint16_t size)
typedef void(*	protocol_answer_obj_data_func_t) (void *protocol_str, void *pack_info, base_protocol_data_segment_struct *data_segment)
typedef void(*	device_main_receiver_t) (void *protocol_str, protocol_receive_struct receive_str)
typedef void(*	protocol_bridge_receive_callback_t) (void *protocol_str, protocol_receive_struct receive_str)
typedef void(*	transmit_data_segment_to_master_t) (void *protocol_str, uint8_t command, base_protocol_data_segment_struct *data_segment)
typedef void(*	transmit_to_slave_t) (void *protocol_str, uint8_t address, uint8_t command, base_bus_transmit_settings_struct *tx_settings, uint8_t *data_buf, uint16_t size)
typedef int(*	request_from_slave_blocked_t) (void *protocol_str, uint8_t address, uint8_t command, base_bus_transmit_settings_struct *tx_settings, uint8_t *tx_data_buf, uint16_t tx_size, uint32_t wait_rx_size, uint32_t wait_time_ms, ubi4_bus_package_info_struct *pack_info_out, uint8_t **buf_out, uint32_t *len)
typedef int(*	request_handler_blocked_t) (void *protocol_str, uint8_t address, uint8_t command, base_bus_transmit_settings_struct *tx_settings, uint8_t *tx_data_buf, uint16_t tx_size, uint32_t wait_rx_size, uint32_t wait_time_ms)
typedef void(*	transmit_bridge_to_slave_t) (void *protocol_str, uint8_t address, uint8_t command, bool last_package, void *source_protocol_str, void *source_pack_info, base_protocol_data_segment_struct *data_segment)
typedef void(*	transmit_bridge_to_slave_queue_t) (void *protocol_str, uint8_t address, uint8_t command, bool last_package, void *source_protocol_str, void *source_pack_info, base_protocol_data_segment_struct *data_segment)
typedef void *(*	get_specific_pack_info_t) (void *protocol_str, void *pack_info, pack_info_specificator_enum specificator, uint8_t *status)
typedef uint8_t(*	get_specific_byte_pack_info_t) (void *protocol_str, void *pack_info, pack_info_specificator_enum specificator, uint8_t *status)
typedef void(*	parce_preamble_t) (void *protocol_str, uint8_t *data, uint16_t size)
typedef void(*	protocol_close_port_callback_t) (void *protocol_str)
typedef void(*	receiver_typedef) (void *protocol_str, protocol_receive_struct receive_str)

Enumerations
enum	package_type_enum { PACKAGE_TYPE_FIX_LEN = 0 , PACKAGE_TYPE_VAR_LEN , PE_RES1 , PE_RES2 }
enum	simple_device_type_enum {   SDT_DRIVER = 0x00 , SDT_SENSORE = 0x01 , SDT_HID = 0x02 , SDT_ALL_DEVICES = 0x03 ,   SDT_NUM }
enum	bus_protocol_package_type_enum { BPPT_FIX_LEN_PACKAGE = 0x00 , BPPT_FLOAT_LEN_PACKAGE = 0x01 , BPPT_RES1 = 0x02 , BPPT_RES2 = 0x03 }
enum	bus_protocol_request_type_enum { BPRT_COMMAND = 0x00 , BPRT_PARAMETERS = 0x01 }
enum	package_info_slot_status_enum { PSSE_FREE = 0x00 , PSSE_BUSY }
enum	protocol_data_segment_status_enum { PDSSE_FREE = 0x00 , PDSSE_BUSY }
enum	protocol_parce_status_enum { PPSE_PARCE_OK = 0x00 , PPSE_SHORT_PACKAGE , PPSE_CRC_FAIL }
enum	pack_info_specificator_enum {   PISE_ID = 0x00 , PISE_BRIGE , PISE_WAIT_ANSWER , PISE_PACKAGE_CODE ,   PISE_PACKAGE_ID , PISE_PACKAGE_SIZE , PISE_PACKAGE_CRC , PISE_ADDRESS ,   PISE_REQUEST_TYPE }
enum	queue_transmit_type_enum { QTTE_UNKNOW = 0x00 , QTTE_DIRECT , QTTE_BRIDGE }
enum	protocol_receive_mode_enum { PRME_RECEIVE_IRQ = 0x00 , PRME_RECEIVE_FULL_BUFFER }

Functions
void	parce (uint8_t *Buf, uint16_t size, ports_enum port)
int	ubi4_bus_receive_data_full_buffer (base_port_struct *port_str)
int	ubi4_bus_receive_data_rx_irq_exec (ubi4_bus_protocol_obj_struct *protocol_str)
void	protocol_tx_complete (ubi4_bus_protocol_obj_struct *protocol_str)
void	ubi4_master_receiver_init (base_port_struct *port, ubi4_bus_protocol_obj_struct **protocol_obj_str)
void	ubi4_remove_pack_info (ubi4_bus_protocol_obj_struct *protocol_str, ubi4_bus_package_info_struct *pack_info)
void	ubi4_slave_receiver_reset (ubi4_bus_protocol_obj_struct *protocol_str)
void	ubi4_slave_receiver_init (base_port_struct *port, ubi4_bus_protocol_init_struct init_struct, ubi4_bus_protocol_obj_struct **protocol_obj_str)
void	ubi4_spi_slave_receiver_init (base_port_struct *port, ubi4_bus_protocol_init_struct init_struct, ubi4_bus_protocol_obj_struct **protocol_obj_str)
void	ubi4_slave_receiver_start (ubi4_bus_protocol_obj_struct *protocol_obj_str)
void	protocol_set_receiver (ubi4_bus_protocol_obj_struct *protocol_str, receiver_typedef receiver)
void	protocol_set_bridge_callback (ubi4_bus_protocol_obj_struct *protocol_str, void(*receiver)(void *protocol_str, protocol_receive_struct receive_str))
bridge_protocol_info_struct	Check_Device_Bridge_Info (void *port_device_manager, uint8_t Address)
uint8_t	Get_Device_Address (uint8_t *status)
void	protocol_delay (uint32_t time_ms)

Typedef Documentation

device_main_receiver_t

typedef void(* device_main_receiver_t) (void *protocol_str, protocol_receive_struct receive_str)

get_data_from_package_t

typedef protocol_parce_status_enum(* get_data_from_package_t) (void *protocol, uint8_t *buf, uint32_t size, ubi4_bus_package_info_struct *pack_info_out, uint8_t **buf_out, uint32_t *len)

get_data_segment_func_t

typedef base_protocol_data_segment_struct *(* get_data_segment_func_t) (void *protocol_str, uint16_t size)

get_specific_byte_pack_info_t

typedef uint8_t(* get_specific_byte_pack_info_t) (void *protocol_str, void *pack_info, pack_info_specificator_enum specificator, uint8_t *status)

get_specific_pack_info_t

typedef void *(* get_specific_pack_info_t) (void *protocol_str, void *pack_info, pack_info_specificator_enum specificator, uint8_t *status)

parce_preamble_t

typedef void(* parce_preamble_t) (void *protocol_str, uint8_t *data, uint16_t size)

protocol_answer_func_t

typedef void(* protocol_answer_func_t) (void *protocol_str, void *pack_info, uint8_t *data_buf, uint16_t size)

protocol_answer_obj_data_func_t

typedef void(* protocol_answer_obj_data_func_t) (void *protocol_str, void *pack_info, base_protocol_data_segment_struct *data_segment)

protocol_bridge_receive_callback_t

typedef void(* protocol_bridge_receive_callback_t) (void *protocol_str, protocol_receive_struct receive_str)

protocol_close_port_callback_t

typedef void(* protocol_close_port_callback_t) (void *protocol_str)

receive_bridge_func_t

typedef void(* receive_bridge_func_t) (void *port_str, uint8_t *buf, uint32_t size)

receive_data_func_t

typedef void(* receive_data_func_t) (void *protocol_str)

receive_to_another_device_func_t

typedef void(* receive_to_another_device_func_t) (void *protocol_str, uint8_t *buf, uint32_t size)

receive_to_current_device_func_t

typedef void(* receive_to_current_device_func_t) (void *protocol_str, uint8_t *buf, uint32_t size)

receiver_typedef

typedef void(* receiver_typedef) (void *protocol_str, protocol_receive_struct receive_str)

remove_pack_info_t

typedef void(* remove_pack_info_t) (void *protocol_str, void *pack_info)

request_from_slave_blocked_t

typedef int(* request_from_slave_blocked_t) (void *protocol_str, uint8_t address, uint8_t command, base_bus_transmit_settings_struct *tx_settings, uint8_t *tx_data_buf, uint16_t tx_size, uint32_t wait_rx_size, uint32_t wait_time_ms, ubi4_bus_package_info_struct *pack_info_out, uint8_t **buf_out, uint32_t *len)

request_handler_blocked_t

typedef int(* request_handler_blocked_t) (void *protocol_str, uint8_t address, uint8_t command, base_bus_transmit_settings_struct *tx_settings, uint8_t *tx_data_buf, uint16_t tx_size, uint32_t wait_rx_size, uint32_t wait_time_ms)

slave_answer_func_t

typedef void(* slave_answer_func_t) (void *protocol_str, uint8_t *buf, uint32_t size)

transmit_bridge_to_slave_queue_t

typedef void(* transmit_bridge_to_slave_queue_t) (void *protocol_str, uint8_t address, uint8_t command, bool last_package, void *source_protocol_str, void *source_pack_info, base_protocol_data_segment_struct *data_segment)

transmit_bridge_to_slave_t

typedef void(* transmit_bridge_to_slave_t) (void *protocol_str, uint8_t address, uint8_t command, bool last_package, void *source_protocol_str, void *source_pack_info, base_protocol_data_segment_struct *data_segment)

transmit_data_segment_to_master_t

typedef void(* transmit_data_segment_to_master_t) (void *protocol_str, uint8_t command, base_protocol_data_segment_struct *data_segment)

transmit_to_slave_t

typedef void(* transmit_to_slave_t) (void *protocol_str, uint8_t address, uint8_t command, base_bus_transmit_settings_struct *tx_settings, uint8_t *data_buf, uint16_t size)

Enumeration Type Documentation

bus_protocol_package_type_enum

enum bus_protocol_package_type_enum

Enumerator
BPPT_FIX_LEN_PACKAGE
BPPT_FLOAT_LEN_PACKAGE
BPPT_RES1
BPPT_RES2

bus_protocol_request_type_enum

enum bus_protocol_request_type_enum

Enumerator
BPRT_COMMAND
BPRT_PARAMETERS

pack_info_specificator_enum

enum pack_info_specificator_enum

Enumerator
PISE_ID
PISE_BRIGE
PISE_WAIT_ANSWER
PISE_PACKAGE_CODE
PISE_PACKAGE_ID
PISE_PACKAGE_SIZE
PISE_PACKAGE_CRC
PISE_ADDRESS
PISE_REQUEST_TYPE

package_info_slot_status_enum

enum package_info_slot_status_enum

Enumerator
PSSE_FREE
PSSE_BUSY

package_type_enum

enum package_type_enum

Enumerator
PACKAGE_TYPE_FIX_LEN
PACKAGE_TYPE_VAR_LEN
PE_RES1
PE_RES2

protocol_data_segment_status_enum

enum protocol_data_segment_status_enum

Enumerator
PDSSE_FREE
PDSSE_BUSY

protocol_parce_status_enum

enum protocol_parce_status_enum

Enumerator
PPSE_PARCE_OK
PPSE_SHORT_PACKAGE
PPSE_CRC_FAIL

protocol_receive_mode_enum

enum protocol_receive_mode_enum

Enumerator
PRME_RECEIVE_IRQ
PRME_RECEIVE_FULL_BUFFER

queue_transmit_type_enum

enum queue_transmit_type_enum

Enumerator
QTTE_UNKNOW
QTTE_DIRECT
QTTE_BRIDGE

simple_device_type_enum

enum simple_device_type_enum

Enumerator
SDT_DRIVER
SDT_SENSORE
SDT_HID
SDT_ALL_DEVICES
SDT_NUM

Function Documentation

Check_Device_Bridge_Info()

bridge_protocol_info_struct Check_Device_Bridge_Info	(	void *	port_device_manager,
		uint8_t	Address )

Here is the call graph for this function:

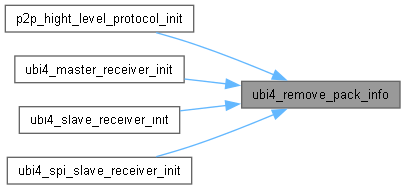

Here is the caller graph for this function:

Get_Device_Address()

uint8_t Get_Device_Address

(

uint8_t *

status

)

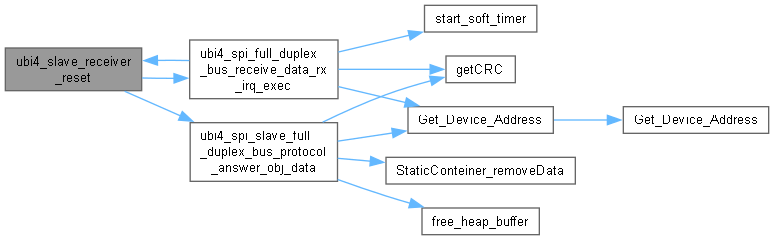

Here is the call graph for this function:

Here is the caller graph for this function:

parce()

void parce	(	uint8_t *	Buf,
		uint16_t	size,
		ports_enum	port )

protocol_delay()

void protocol_delay

(

uint32_t

time_ms

)

Here is the call graph for this function:

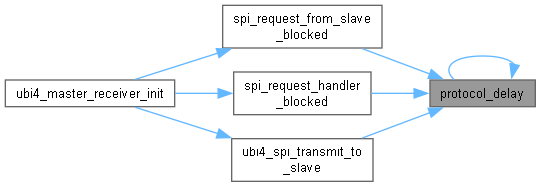

Here is the caller graph for this function:

protocol_set_bridge_callback()

void protocol_set_bridge_callback	(	ubi4_bus_protocol_obj_struct *	protocol_str,
		void(*	receiver )(void *protocol_str, protocol_receive_struct receive_str) )

protocol_set_receiver()

void protocol_set_receiver	(	ubi4_bus_protocol_obj_struct *	protocol_str,
		receiver_typedef	receiver )

protocol_tx_complete()

void protocol_tx_complete

(

ubi4_bus_protocol_obj_struct *

protocol_str

)

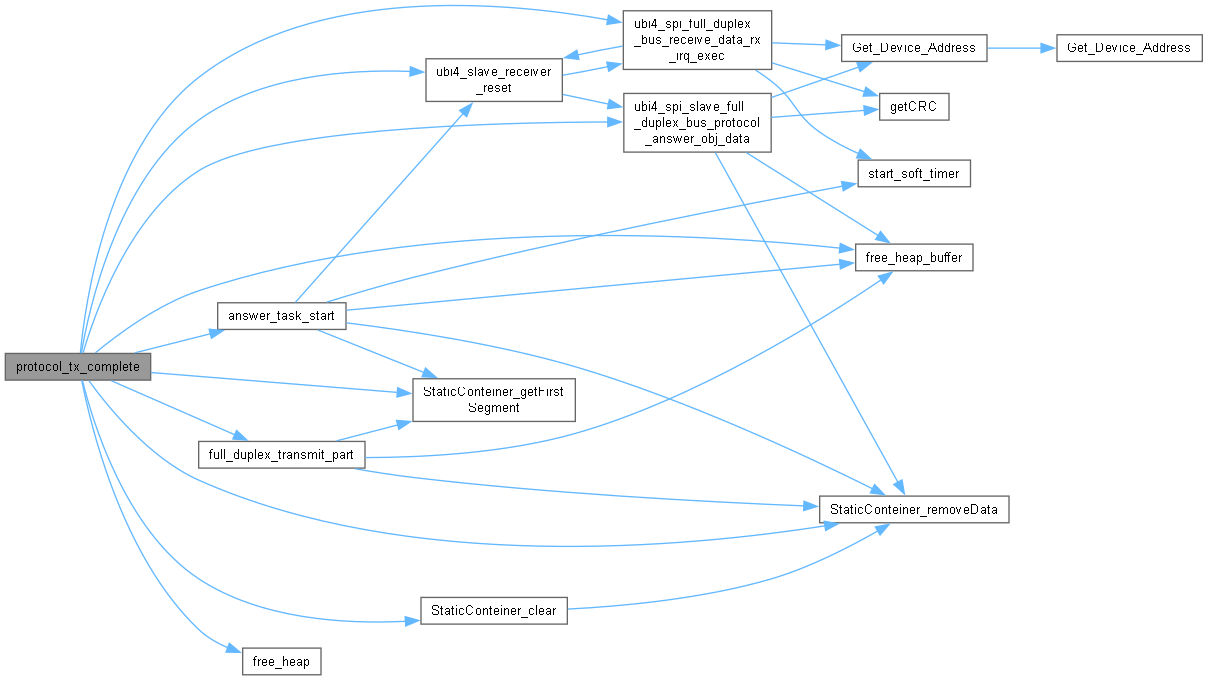

Here is the call graph for this function:

ubi4_bus_receive_data_full_buffer()

int ubi4_bus_receive_data_full_buffer

(

base_port_struct *

port_str

)

Here is the call graph for this function:

Here is the caller graph for this function:

ubi4_bus_receive_data_rx_irq_exec()

int ubi4_bus_receive_data_rx_irq_exec

(

ubi4_bus_protocol_obj_struct *

protocol_str

)

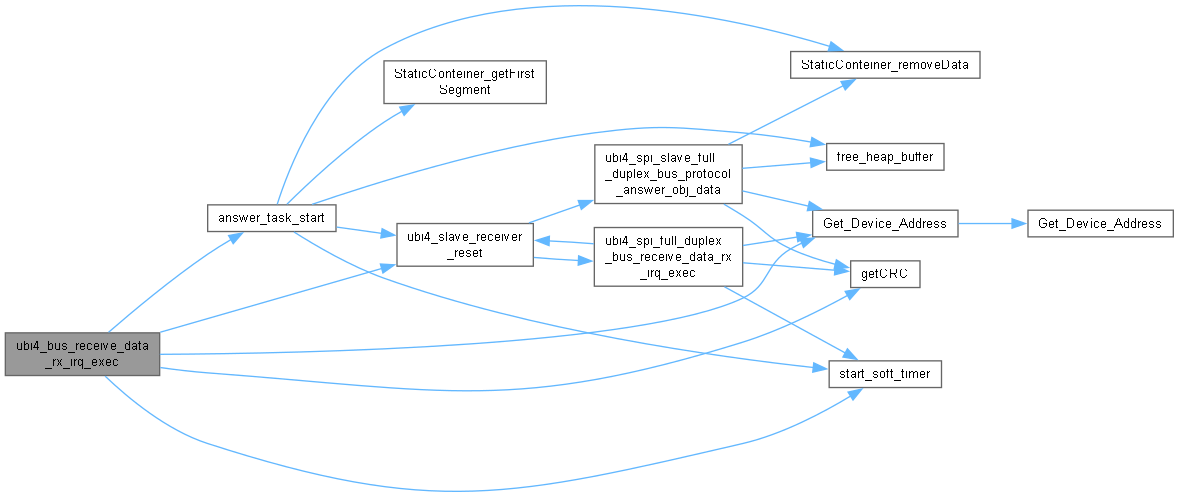

Here is the call graph for this function:

ubi4_master_receiver_init()

void ubi4_master_receiver_init	(	base_port_struct *	port,
		ubi4_bus_protocol_obj_struct **	protocol_obj_str )

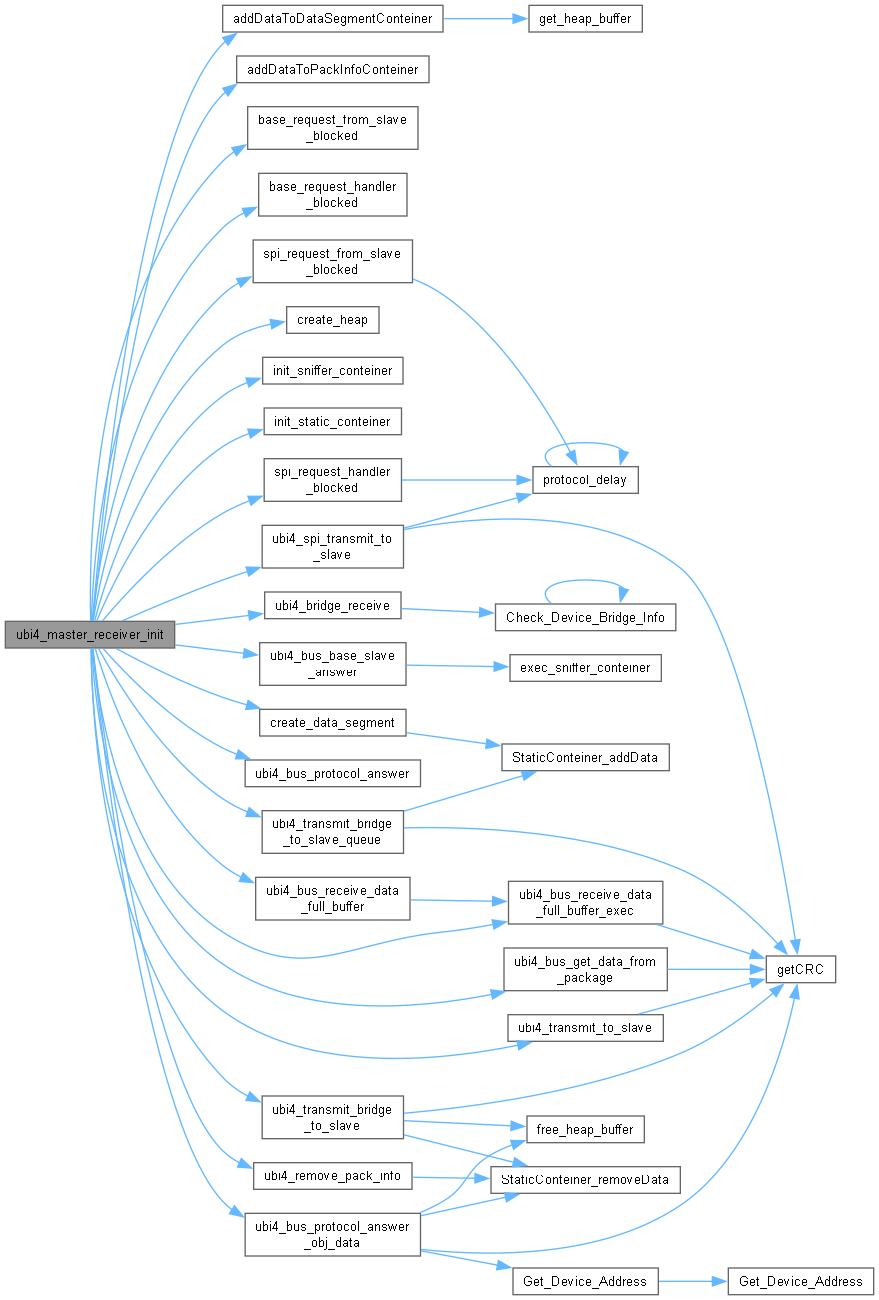

Here is the call graph for this function:

ubi4_remove_pack_info()

void ubi4_remove_pack_info	(	ubi4_bus_protocol_obj_struct *	protocol_str,
		ubi4_bus_package_info_struct *	pack_info )

Here is the call graph for this function:

Here is the caller graph for this function:

ubi4_slave_receiver_init()

void ubi4_slave_receiver_init	(	base_port_struct *	port,
		ubi4_bus_protocol_init_struct	init_struct,
		ubi4_bus_protocol_obj_struct **	protocol_obj_str )

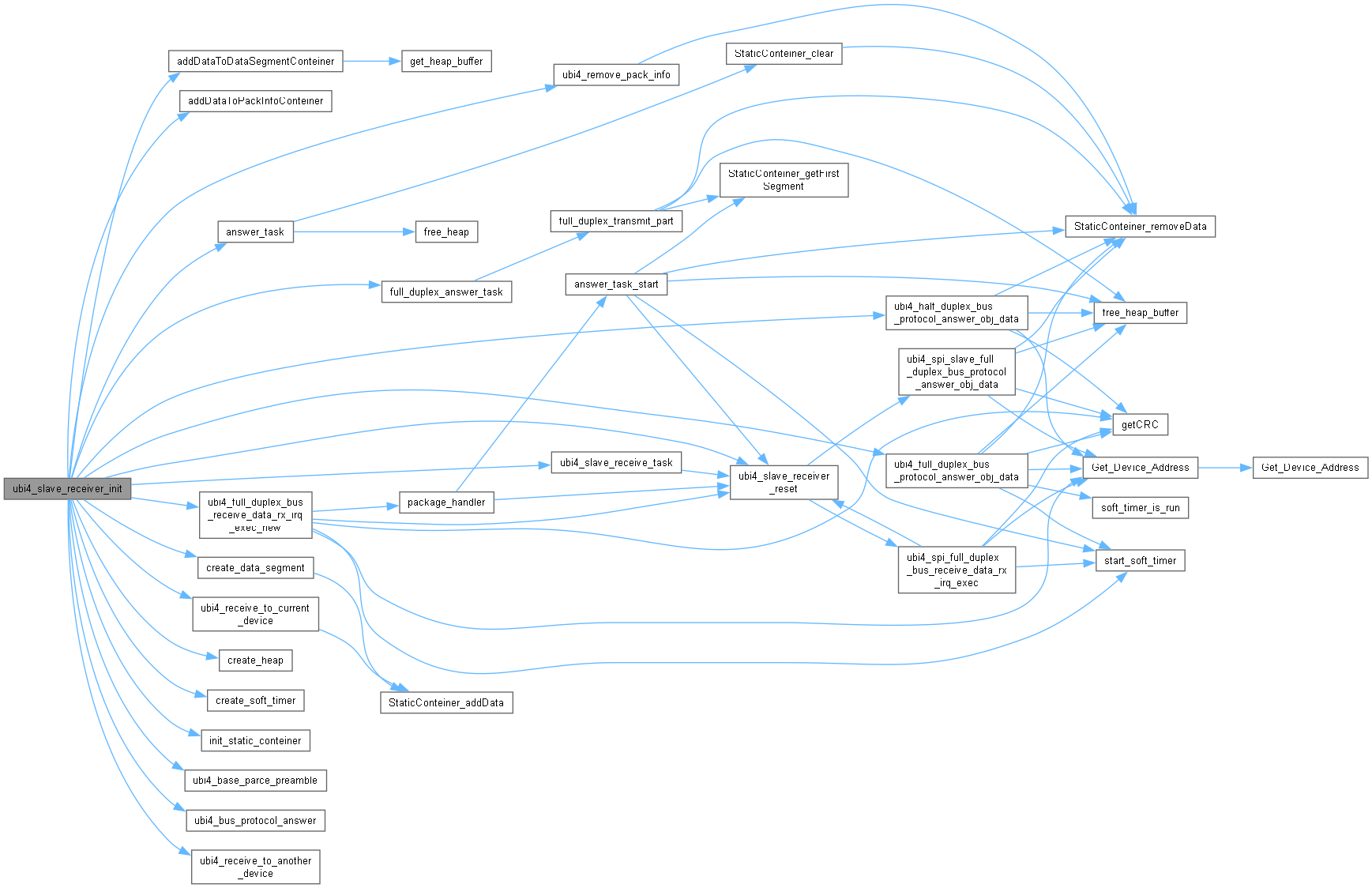

Here is the call graph for this function:

ubi4_slave_receiver_reset()

void ubi4_slave_receiver_reset

(

ubi4_bus_protocol_obj_struct *

protocol_str

)

Here is the call graph for this function:

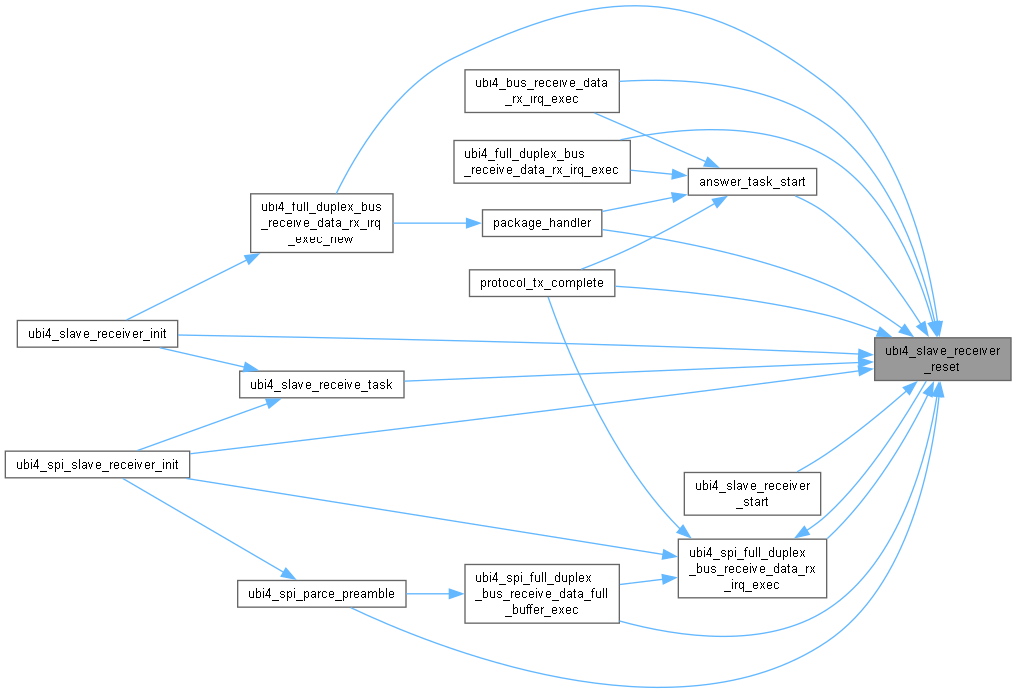

Here is the caller graph for this function:

ubi4_slave_receiver_start()

void ubi4_slave_receiver_start

(

ubi4_bus_protocol_obj_struct *

protocol_obj_str

)

Here is the call graph for this function:

ubi4_spi_slave_receiver_init()

void ubi4_spi_slave_receiver_init	(	base_port_struct *	port,
		ubi4_bus_protocol_init_struct	init_struct,
		ubi4_bus_protocol_obj_struct **	protocol_obj_str )

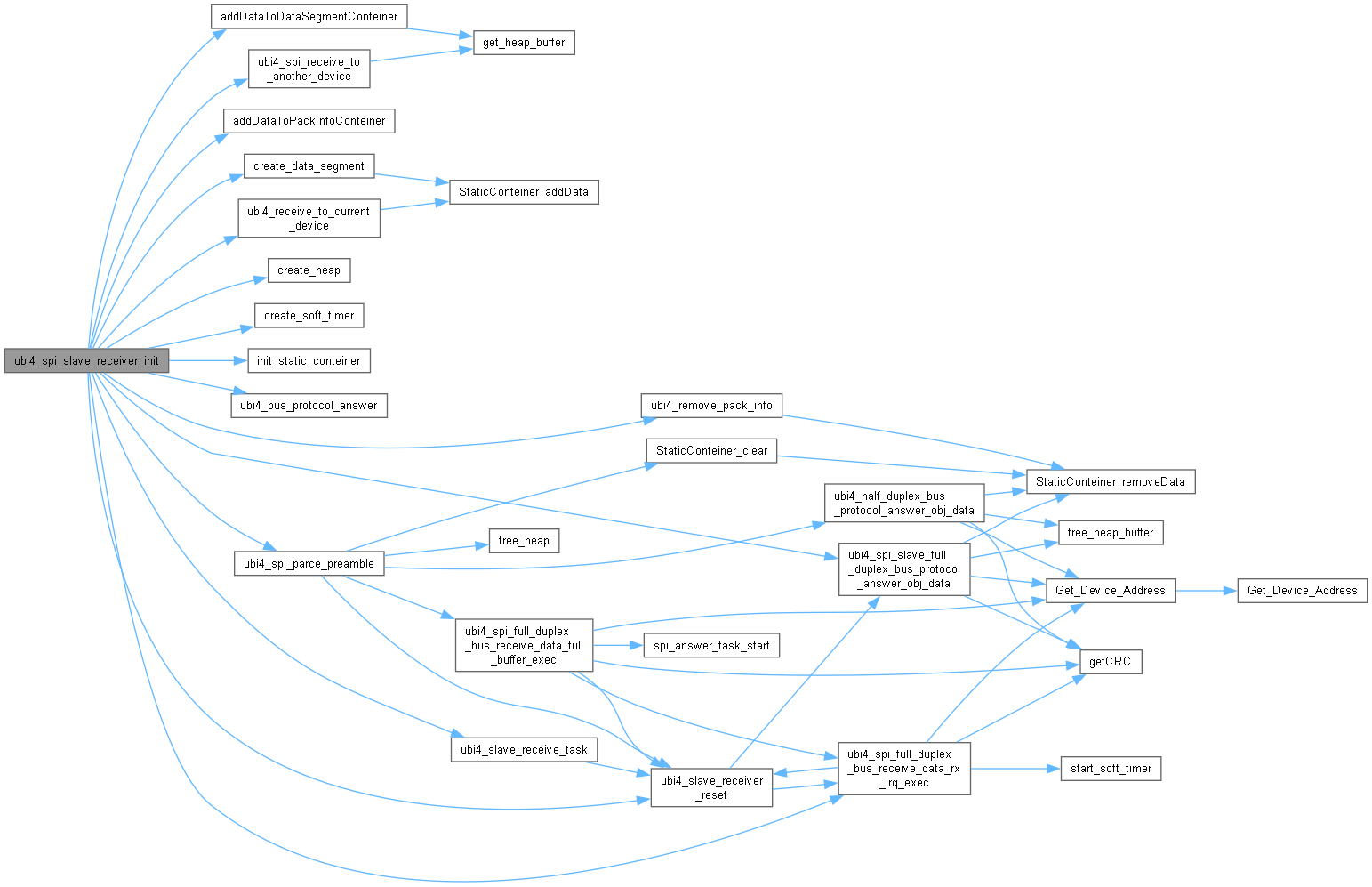

Here is the call graph for this function:
