data_table.h File Reference

#include "stdint.h"
#include "stdbool.h"
#include "TransportLevel/main_receiver.h"
#include "Data/data_table_structs.h"
#include "Drivers/base_memory_driver.h"

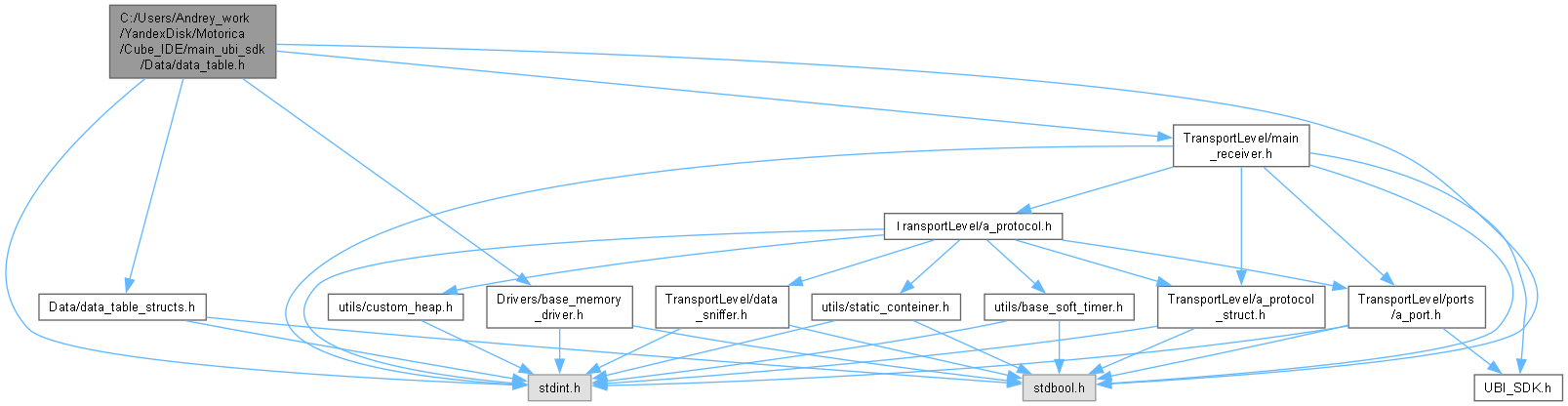

Include dependency graph for data_table.h:

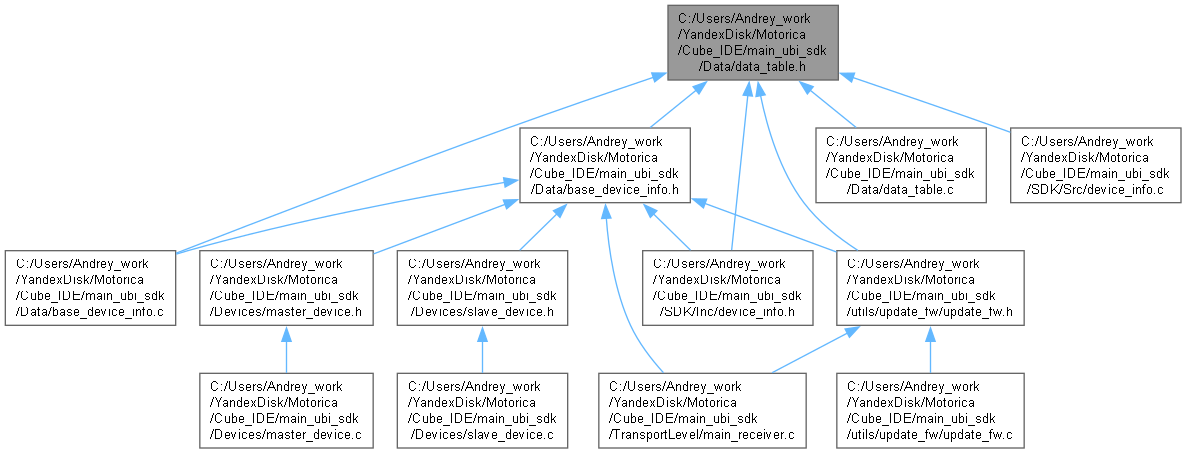

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	data_table_ram_image_pointer_struct
struct	data_table_default_struct
struct	data_table_slot_compare_struct
struct	data_table_struct
struct	data_table_write_part_struct

Macros
#define	DATA_TABLE_INIT_CODE   0x513429EF
#define	DATA_TABLE_SIZE   16
#define	DATA_TABLE_VERSION   1

Enumerations
enum	data_table_slot_compare_result_enum {   DTSCRE_SLOTS_EQUAL = 0 , DTSCRE_SLOTS_NEW_DATA , DTSCRE_SLOTS_NOT_FOUND , DTSCRE_CHANGE_SUB_VERSION_ADD_DATA ,   DTSCRE_CHANGE_SUB_VERSION_SUB_DATA , DTSCRE_CHANGE_VERSION , DTSCRE_ERROR }
enum	data_table_slot_compare_status_enum {   DTSCSE_DATA_MATCH = 0 , DTSCSE_DATA_NOT_MATCH , DTSCSE_SIZE_NOT_MATCH , DTSCSE_SLOT_NOT_FOUND ,   DTSCSE_ERROR }

Functions
data_table_initialize_status_enum	DataTableInit (data_table_struct *data_table, base_memory_driver_struct *memory_driver)
data_table_open_status_enum	DataTable_Open (data_table_struct *data_table)
void	DataTable_Close (data_table_struct *data_table)
void	DataTable_Save (data_table_struct *data_table)
void	DataTableSetRamImageFlag (data_table_struct *data_table, uint8_t slot)
void	DataTable_Init_Default_RAM (data_table_struct *data_table)
void	DataTableInitialiseRamImage (data_table_struct *data_table)
void	DataTableInitFinish (data_table_struct *data_table)
data_table_slot_struct *	DataTable_WriteNewSlot (data_table_struct *data_table, data_table_slot_struct *Row, data_table_write_new_slot_status_enum *status)
data_table_slot_struct *	Data_Table_ReadSlot (data_table_struct *data_table, uint8_t slot, data_table_read_slot_status_enum *status)
data_table_slot_struct *	Data_Table_ReadDefaultSlot (data_table_struct *data_table, uint8_t slot, data_table_read_slot_status_enum *status)
data_table_write_data_in_ram_status_enum	DataTable_WriteSlotData_RAM (data_table_struct *data_table, uint8_t slot, uint8_t *Data, uint32_t size)
void *	DataTable_ReadData_RAM (data_table_struct *data_table, uint8_t slot, data_table_read_data_status_enum *status)
void	DataTableWriteData (data_table_struct *data_table, uint8_t slot, uint8_t *Data, data_table_write_data_status_enum *status)
void *	Data_Table_ReadDefaultData (data_table_struct *data_table, uint8_t slot, data_table_read_data_status_enum *status)
void *	Data_Table_ReadData (data_table_struct *data_table, uint8_t slot, data_table_read_data_status_enum *status)
data_table_ram_image_pointer_struct *	Data_Table_ReadDataImage (data_table_struct *data_table, uint8_t slot, data_table_read_data_status_enum *status)
void	ReadAvailableSlot_v2 (data_table_struct *data_table, ubi4_bus_protocol_obj_struct *protocol_str, protocol_receive_struct receive_str)
void	ReadSlot (data_table_struct *data_table, ubi4_bus_protocol_obj_struct *protocol_str, protocol_receive_struct receive_str)
void	ReadDataInSlot_v2 (data_table_struct *data_table, ubi4_bus_protocol_obj_struct *protocol_str, protocol_receive_struct receive_str)
void	WriteDataInSlot_v2 (data_table_struct *data_table, ubi4_bus_protocol_obj_struct *protocol_str, protocol_receive_struct receive_str)
void	ReadDataPartInSlot_v2 (data_table_struct *data_table, ubi4_bus_protocol_obj_struct *protocol_str, protocol_receive_struct receive_str)
void	WriteDataPartInSlot_v2 (data_table_struct *data_table, ubi4_bus_protocol_obj_struct *protocol_str, protocol_receive_struct receive_str)
void	ReadAvailableSlot (data_table_struct *data_table, command_selector_struct command)
void	ReadDataInSlot (data_table_struct *data_table, command_selector_struct command)
void	WriteDataInSlot (data_table_struct *data_table, command_selector_struct command)
void	DataTable_Clear (data_table_struct *data_table)
void	DataTable_Clear_RAM (data_table_struct *data_table)
void	Data_Table_Reset (data_table_struct *data_table)
void	DataTable_Calc_Image_CRC (data_table_struct *data_table)
data_table_slot_compare_status_enum	DataTable_CompareSlotData (data_table_struct *data_table, uint8_t Slot, uint8_t *Data, uint32_t size)

Variables
uint32_t	Data_Table_TableLocation
data_table_info_struct *	Data_Table_Info

Macro Definition Documentation

DATA_TABLE_INIT_CODE

#define DATA_TABLE_INIT_CODE   0x513429EF

DATA_TABLE_SIZE

#define DATA_TABLE_SIZE   16

DATA_TABLE_VERSION

#define DATA_TABLE_VERSION   1

Enumeration Type Documentation

data_table_slot_compare_result_enum

enum data_table_slot_compare_result_enum

Enumerator
DTSCRE_SLOTS_EQUAL
DTSCRE_SLOTS_NEW_DATA
DTSCRE_SLOTS_NOT_FOUND
DTSCRE_CHANGE_SUB_VERSION_ADD_DATA
DTSCRE_CHANGE_SUB_VERSION_SUB_DATA
DTSCRE_CHANGE_VERSION
DTSCRE_ERROR

data_table_slot_compare_status_enum

enum data_table_slot_compare_status_enum

Enumerator
DTSCSE_DATA_MATCH
DTSCSE_DATA_NOT_MATCH
DTSCSE_SIZE_NOT_MATCH
DTSCSE_SLOT_NOT_FOUND
DTSCSE_ERROR

Function Documentation

Data_Table_ReadData()

void * Data_Table_ReadData	(	data_table_struct *	data_table,
		uint8_t	slot,
		data_table_read_data_status_enum *	status )

Here is the caller graph for this function:

Data_Table_ReadDataImage()

data_table_ram_image_pointer_struct * Data_Table_ReadDataImage	(	data_table_struct *	data_table,
		uint8_t	slot,
		data_table_read_data_status_enum *	status )

Here is the caller graph for this function:

Data_Table_ReadDefaultData()

void * Data_Table_ReadDefaultData	(	data_table_struct *	data_table,
		uint8_t	slot,
		data_table_read_data_status_enum *	status )

Here is the caller graph for this function:

Data_Table_ReadDefaultSlot()

data_table_slot_struct * Data_Table_ReadDefaultSlot	(	data_table_struct *	data_table,
		uint8_t	slot,
		data_table_read_slot_status_enum *	status )

Here is the caller graph for this function:

Data_Table_ReadSlot()

data_table_slot_struct * Data_Table_ReadSlot	(	data_table_struct *	data_table,
		uint8_t	slot,
		data_table_read_slot_status_enum *	status )

Here is the caller graph for this function:

Data_Table_Reset()

void Data_Table_Reset

(

data_table_struct *

data_table

)

Here is the call graph for this function:

Here is the caller graph for this function:

DataTable_Calc_Image_CRC()

void DataTable_Calc_Image_CRC

(

data_table_struct *

data_table

)

Here is the call graph for this function:

DataTable_Clear()

void DataTable_Clear

(

data_table_struct *

data_table

)

DataTable_Clear_RAM()

void DataTable_Clear_RAM

(

data_table_struct *

data_table

)

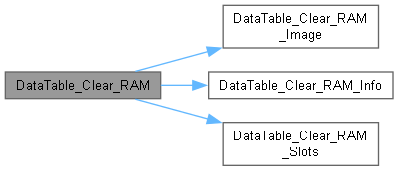

Here is the call graph for this function:

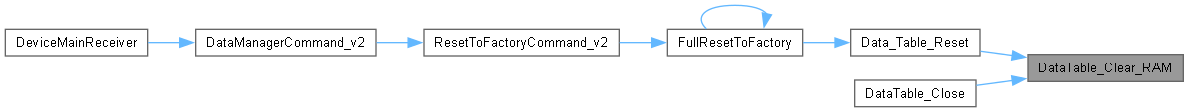

Here is the caller graph for this function:

DataTable_Close()

void DataTable_Close

(

data_table_struct *

data_table

)

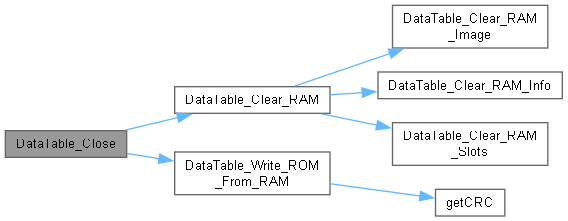

Here is the call graph for this function:

DataTable_CompareSlotData()

data_table_slot_compare_status_enum DataTable_CompareSlotData	(	data_table_struct *	data_table,
		uint8_t	Slot,
		uint8_t *	Data,
		uint32_t	size )

DataTable_Init_Default_RAM()

void DataTable_Init_Default_RAM

(

data_table_struct *

data_table

)

DataTable_Open()

data_table_open_status_enum DataTable_Open

(

data_table_struct *

data_table

)

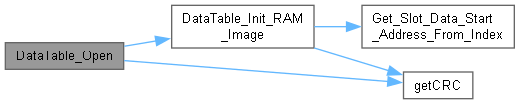

Here is the call graph for this function:

Here is the caller graph for this function:

DataTable_ReadData_RAM()

void * DataTable_ReadData_RAM	(	data_table_struct *	data_table,
		uint8_t	slot,
		data_table_read_data_status_enum *	status )

DataTable_Save()

void DataTable_Save

(

data_table_struct *

data_table

)

Here is the call graph for this function:

Here is the caller graph for this function:

DataTable_WriteNewSlot()

data_table_slot_struct * DataTable_WriteNewSlot	(	data_table_struct *	data_table,
		data_table_slot_struct *	Row,
		data_table_write_new_slot_status_enum *	status )

DataTable_WriteSlotData_RAM()

data_table_write_data_in_ram_status_enum DataTable_WriteSlotData_RAM	(	data_table_struct *	data_table,
		uint8_t	slot,
		uint8_t *	Data,
		uint32_t	size )

DataTableInit()

data_table_initialize_status_enum DataTableInit	(	data_table_struct *	data_table,
		base_memory_driver_struct *	memory_driver )

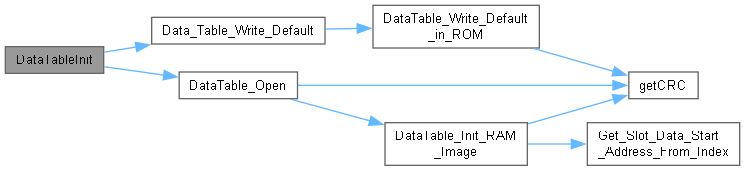

Here is the call graph for this function:

Here is the caller graph for this function:

DataTableInitFinish()

void DataTableInitFinish

(

data_table_struct *

data_table

)

DataTableInitialiseRamImage()

void DataTableInitialiseRamImage

(

data_table_struct *

data_table

)

DataTableSetRamImageFlag()

void DataTableSetRamImageFlag	(	data_table_struct *	data_table,
		uint8_t	slot )

DataTableWriteData()

void DataTableWriteData	(	data_table_struct *	data_table,
		uint8_t	slot,
		uint8_t *	Data,
		data_table_write_data_status_enum *	status )

ReadAvailableSlot()

void ReadAvailableSlot	(	data_table_struct *	data_table,
		command_selector_struct	command )

ReadAvailableSlot_v2()

void ReadAvailableSlot_v2	(	data_table_struct *	data_table,
		ubi4_bus_protocol_obj_struct *	protocol_str,
		protocol_receive_struct	receive_str )

Here is the caller graph for this function:

ReadDataInSlot()

void ReadDataInSlot	(	data_table_struct *	data_table,
		command_selector_struct	command )

ReadDataInSlot_v2()

void ReadDataInSlot_v2	(	data_table_struct *	data_table,
		ubi4_bus_protocol_obj_struct *	protocol_str,
		protocol_receive_struct	receive_str )

Here is the call graph for this function:

Here is the caller graph for this function:

ReadDataPartInSlot_v2()

void ReadDataPartInSlot_v2	(	data_table_struct *	data_table,
		ubi4_bus_protocol_obj_struct *	protocol_str,
		protocol_receive_struct	receive_str )

Here is the call graph for this function:

Here is the caller graph for this function:

ReadSlot()

void ReadSlot	(	data_table_struct *	data_table,
		ubi4_bus_protocol_obj_struct *	protocol_str,
		protocol_receive_struct	receive_str )

Here is the call graph for this function:

Here is the caller graph for this function:

WriteDataInSlot()

void WriteDataInSlot	(	data_table_struct *	data_table,
		command_selector_struct	command )

Here is the call graph for this function:

WriteDataInSlot_v2()

void WriteDataInSlot_v2	(	data_table_struct *	data_table,
		ubi4_bus_protocol_obj_struct *	protocol_str,
		protocol_receive_struct	receive_str )

Here is the call graph for this function:

Here is the caller graph for this function:

WriteDataPartInSlot_v2()

void WriteDataPartInSlot_v2	(	data_table_struct *	data_table,
		ubi4_bus_protocol_obj_struct *	protocol_str,
		protocol_receive_struct	receive_str )

Here is the caller graph for this function:

Variable Documentation

Data_Table_Info

data_table_info_struct* Data_Table_Info

extern

Data_Table_TableLocation

uint32_t Data_Table_TableLocation

extern
