enum_discription.h File Reference

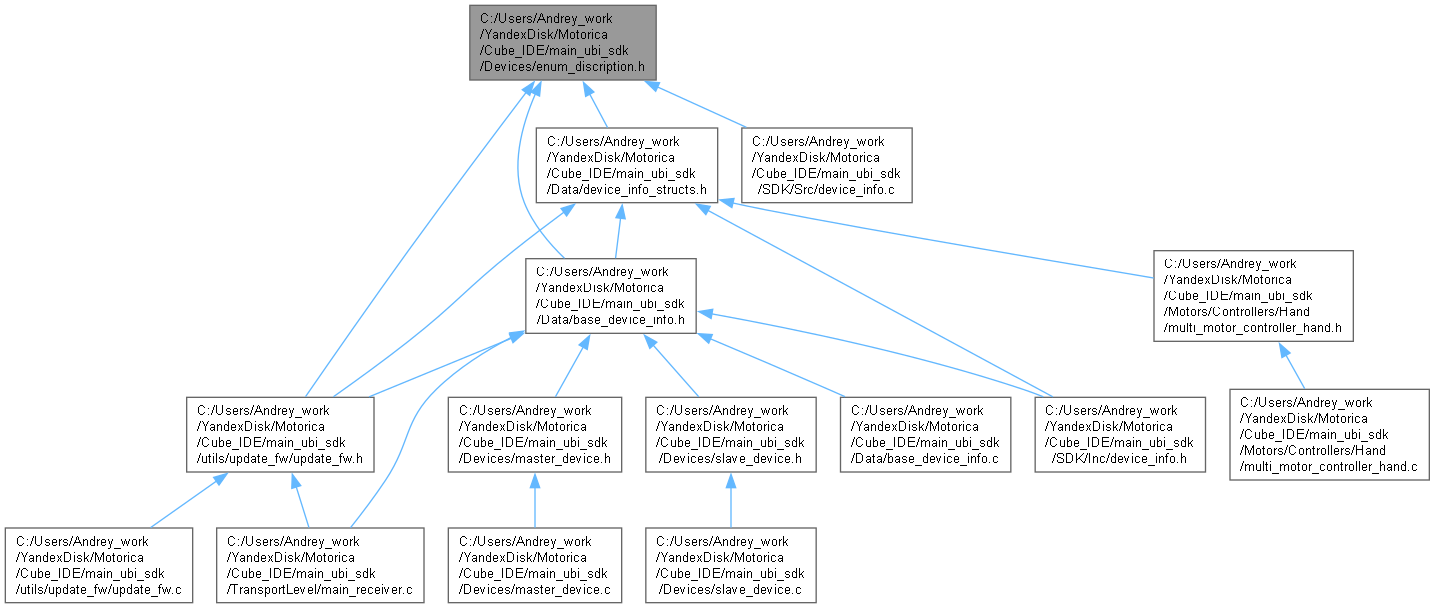

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  device_id_group_address_struct


Macros

#define CHECK_BOARD_NAME_MASK   0x01

#define CHECK_BOARD_VERSION_MASK   0x02

#define CHECK_BOARD_SUB_VERSION_MASK   0x04

#define CHECK_BOARD_REVISION_MASK   0x08

#define CHECK_BOARD_SUB_REVISION_MASK   0x10

#define CHECK_BOARD_BUILD_MASK   0x20

#define CHECK_BOARD_TYPE_MASK   0x40

#define CHECK_BOARD_CODE_MASK   0x80

#define PTD_BOOTLOADER   1

#define PTD_MAIN_PROGRAM   2


Enumerations

enum  device_address_group_enum {
  DAGE_NO_GROUP = 0x00 , DAGE_NO_GROUP_2 = 0x01 , DAGE_SMALL_OUTPUT_DEVICE = 0x02 , DAGE_BIG_OUTPUT_DEVICE = 0x03 ,
  DAGE_SINGLE_CHANNEL_INPUT_DEVICE = 0x04 , DAGE_MULTY_CHANNEL_INPUT_DEVICE = 0x05 , DAGE_SINGLE_CHANNEL_FEEDBACK_OUTPUT_DEVICE = 0x06 , DAGE_MULTY_CHANNEL_FEEDBACK_OUTPUT_DEVICE = 0x07 ,
  DAGE_SINGLE_CHANNEL_FEEDBACK_SENSOR_DEVICE = 0x08 , DAGE_MULTY_CHANNEL_FEEDBACK_SENSOR_DEVICE = 0x09 , DAGE_BROADCAST_GROUP = 0x0F
}

enum  device_codes_enum {
  DCE_CPU_MODULE = 1 , DCE_FEST_H_AND_F , DCE_INDY , DCE_EMG_SENSE ,
  DCE_BMS , DCE_GUI , DCE_OMG_MODULE , DCE_FINGERS_DC_DRIVER
}

enum  device_types_enum {
  DTE_UNKNOW = 0x00 , DTE_CPU = 0x01 , DTE_SUB_CPU = 0x02 , DTE_DRIVER = 0x10 ,
  DTE_MOTOR_DRIVER = 0x11 , DTE_MOTOR_DRIVER_MULTY_CH = 0x12 , DTE_SENSOR = 0x20 , DTE_EMG_1CH = 0x21 ,
  DTE_EMG_2CH = 0x22 , DTE_EMG_MULTY_CH = 0x23 , DTE_OMG_SEGMENT = 0x24 , DTE_OMG_MULTY_CH = 0x25 ,
  DTE_OMG_EMG_SEGMENT = 0x26 , DTE_OMG_EMG_MULTY_CH = 0x27 , DTE_STIMULATOR = 0x30 , DTE_HMI = 0x40 ,
  DTE_DISPLAY = 0x41 , DTE_BUTTONS = 0x42 , DTE_SOUNDS = 0x43 , DTE_DISPLAY_BUTTONS = 0x44 ,
  DTE_DISPLAY_SOUNDS = 0x45 , DTE_BUTTONS_SOUNDS = 0x46 , DTE_DISPLAY_BUTTONS_SOUNDS = 0x47 , DTE_TOUCH_DISPLAY = 0x48 ,
  DTE_TOUCH_DISPLAY_SOUNDS = 0x49 , DTE_POWER = 0x50 , DTE_BMS = 0x51 , DTE_ACB = 0x52 ,
  DTE_POWER_CONVERTER = 0x53 , DTE_POWER_ISOLATOR = 0x54 , DTE_POWER_COMBO = 0x55 , DTE_COMBO = 0x60 ,
  DTE_OTHER = 0x70
}

enum  device_roles_enum {
  DRE_UNKNOWN = 0 , DRE_MAIN_CONTROLLER , DRE_DISPLAY , DRE_TOUCH_DISPLAY ,
  DRE_BUTTON , DRE_CONTROL_PANEL , DRE_BMS , DRE_OMG ,
  DRE_HAND_OPEN_SENSOR , DRE_HAND_CLOSE_SENSOR , DRE_HAND_OPEN_CLOSE_SENSOR , DRE_HAND_ARRAY_SENSOR ,
  DRE_WRIST_ARRAY_SENSOR , DRE_WRIST_ROTATION_OPEN_SENSOR , DRE_WRIST_ROTATION_CLOSE_SENSOR , DRE_WRIST_ROTATION_OPEN_CLOSE_SENSOR ,
  DRE_WRIST_FLEXION_OPEN_SENSOR , DRE_WRIST_FLEXION_CLOSE_SENSOR , DRE_WRIST_FLEXION_OPEN_CLOSE_SENSOR , DRE_WRIST_OPPOSITION_OPEN_SENSOR ,
  DRE_WRIST_OPPOSITION_CLOSE_SENSOR , DRE_WRIST_OPPOSITION_OPEN_CLOSE_SENSOR , DRE_ELBOW_ARRAY_SENSOR , DRE_ELBOW_FLEXION_OPEN_SENSOR ,
  DRE_ELBOW_FLEXION_CLOSE_SENSOR , DRE_ELBOW_FLEXION_OPEN_CLOSE_SENSOR , DRE_ELBOW_ROTATION_OPEN_SENSOR , DRE_ELBOW_ROTATION_CLOSE_SENSOR ,
  DRE_ELBOW_ROTATION_OPEN_CLOSE_SENSOR , DRE_GESTURE_CONTROL_SENSOR , DRE_HAND_DRIVER , DRE_WRIST_DRIVER ,
  DRE_WRIST_ROTATION_DRIVER , DRE_WRIST_FLEXION_DRIVER , DRE_WRIST_OPOSITION_DRIVER , DRE_WRIST_ROTATION_FLEXION_DRIVER ,
  DRE_ELBOW_DRIVER , DRE_ELBOW_FLEXION_DRIVER , DRE_ELBOW_OPOSITION_DRIVER , DRE_INDEX_FINGER_DRIVER ,
  DRE_MIDDLE_FINGER_DRIVER , DRE_RING_FINGER_DRIVER , DRE_PINKY_FINGER_DRIVER , DRE_THUMB_FINGER_DRIVER ,
  DRE_ROTATION_FINGER_DRIVER , DRE_ROTATION_THUMB_FINGER_DRIVER
}

enum  board_types_enum {
  BTE_MULTI_MODULE_PERIPHERAL_BOARD_TYPE = 1 , BTE_MULTI_MODULE_CPU_BOARD_TYPE , BTE_CPU_BOARD_TYPE , BTE_BMS_BOARD_TYPE ,
  BTE_DRIVER_BOARD_TYPE , BTE_SENSORE_BOARD_TYPE , BTE_UI_BOARD_TYPE
}

enum  board_codes_enum {
  BCE_CPU_MODULE = 1 , BCE_FEST_X_DRIVER , BCE_SINGLE_GRIP_DRIVER , BCE_EMG_SENSE_32BIT ,
  BCE_CHARGER_2S_USB_ROUND , BCE_GUI_MODULE , BCE_MULTIGRIP_F , BCE_OMG_MODULE
}

enum  Program_type_code_enum { PTE_UNKNOW = 0 , PTE_BOOTLOADER , PTE_MAIN_PROGRAM }

enum  bootloader_code_enum {
  BCE_UNKNOW = 0 , BCE_BASE_BOOTLOADER , BCE_TEST_STM32F4_BOOTLOADER , BCE_CPU_BOOTLOADER ,
  BCE_BMS_BOOTLOADER , BCE_EMG_2CH_BOOTLOADER , BCE_GUI_BOOTLOADER , BCE_FINGERS_DRIVER_BOOTLOADER ,
  BCE_OMG_BOOTLOADER
}

enum  bootloader_additional_info_type_enum { BAIT_EMPTY = 0 }


Macro Definition Documentation

◆ CHECK_BOARD_BUILD_MASK

#define CHECK_BOARD_BUILD_MASK   0x20

◆ CHECK_BOARD_CODE_MASK

#define CHECK_BOARD_CODE_MASK   0x80

◆ CHECK_BOARD_NAME_MASK

#define CHECK_BOARD_NAME_MASK   0x01

◆ CHECK_BOARD_REVISION_MASK

#define CHECK_BOARD_REVISION_MASK   0x08

◆ CHECK_BOARD_SUB_REVISION_MASK

#define CHECK_BOARD_SUB_REVISION_MASK   0x10

◆ CHECK_BOARD_SUB_VERSION_MASK

#define CHECK_BOARD_SUB_VERSION_MASK   0x04

◆ CHECK_BOARD_TYPE_MASK

#define CHECK_BOARD_TYPE_MASK   0x40

◆ CHECK_BOARD_VERSION_MASK

#define CHECK_BOARD_VERSION_MASK   0x02

◆ PTD_BOOTLOADER

#define PTD_BOOTLOADER   1

◆ PTD_MAIN_PROGRAM

#define PTD_MAIN_PROGRAM   2

Enumeration Type Documentation

◆ board_codes_enum

enum board_codes_enum
Enumerator
BCE_CPU_MODULE
BCE_FEST_X_DRIVER
BCE_SINGLE_GRIP_DRIVER
BCE_EMG_SENSE_32BIT
BCE_CHARGER_2S_USB_ROUND
BCE_GUI_MODULE
BCE_MULTIGRIP_F
BCE_OMG_MODULE

◆ board_types_enum

enum board_types_enum
Enumerator
BTE_MULTI_MODULE_PERIPHERAL_BOARD_TYPE
BTE_MULTI_MODULE_CPU_BOARD_TYPE
BTE_CPU_BOARD_TYPE
BTE_BMS_BOARD_TYPE
BTE_DRIVER_BOARD_TYPE
BTE_SENSORE_BOARD_TYPE
BTE_UI_BOARD_TYPE

◆ bootloader_additional_info_type_enum

enum bootloader_additional_info_type_enum
Enumerator
BAIT_EMPTY

◆ bootloader_code_enum

enum bootloader_code_enum
Enumerator
BCE_UNKNOW
BCE_BASE_BOOTLOADER
BCE_TEST_STM32F4_BOOTLOADER
BCE_CPU_BOOTLOADER
BCE_BMS_BOOTLOADER
BCE_EMG_2CH_BOOTLOADER
BCE_GUI_BOOTLOADER
BCE_FINGERS_DRIVER_BOOTLOADER
BCE_OMG_BOOTLOADER

◆ device_codes_enum

enum device_codes_enum
Enumerator
DCE_CPU_MODULE
DCE_FEST_H_AND_F
DCE_INDY
DCE_EMG_SENSE
DCE_BMS
DCE_GUI
DCE_OMG_MODULE
DCE_FINGERS_DC_DRIVER

◆ device_roles_enum

enum device_roles_enum
Enumerator
DRE_UNKNOWN
DRE_MAIN_CONTROLLER
DRE_DISPLAY
DRE_TOUCH_DISPLAY
DRE_BUTTON
DRE_CONTROL_PANEL
DRE_BMS
DRE_OMG
DRE_HAND_OPEN_SENSOR
DRE_HAND_CLOSE_SENSOR
DRE_HAND_OPEN_CLOSE_SENSOR
DRE_HAND_ARRAY_SENSOR
DRE_WRIST_ARRAY_SENSOR
DRE_WRIST_ROTATION_OPEN_SENSOR
DRE_WRIST_ROTATION_CLOSE_SENSOR
DRE_WRIST_ROTATION_OPEN_CLOSE_SENSOR
DRE_WRIST_FLEXION_OPEN_SENSOR
DRE_WRIST_FLEXION_CLOSE_SENSOR
DRE_WRIST_FLEXION_OPEN_CLOSE_SENSOR
DRE_WRIST_OPPOSITION_OPEN_SENSOR
DRE_WRIST_OPPOSITION_CLOSE_SENSOR
DRE_WRIST_OPPOSITION_OPEN_CLOSE_SENSOR
DRE_ELBOW_ARRAY_SENSOR
DRE_ELBOW_FLEXION_OPEN_SENSOR
DRE_ELBOW_FLEXION_CLOSE_SENSOR
DRE_ELBOW_FLEXION_OPEN_CLOSE_SENSOR
DRE_ELBOW_ROTATION_OPEN_SENSOR
DRE_ELBOW_ROTATION_CLOSE_SENSOR
DRE_ELBOW_ROTATION_OPEN_CLOSE_SENSOR
DRE_GESTURE_CONTROL_SENSOR
DRE_HAND_DRIVER
DRE_WRIST_DRIVER
DRE_WRIST_ROTATION_DRIVER
DRE_WRIST_FLEXION_DRIVER
DRE_WRIST_OPOSITION_DRIVER
DRE_WRIST_ROTATION_FLEXION_DRIVER
DRE_ELBOW_DRIVER
DRE_ELBOW_FLEXION_DRIVER
DRE_ELBOW_OPOSITION_DRIVER
DRE_INDEX_FINGER_DRIVER
DRE_MIDDLE_FINGER_DRIVER
DRE_RING_FINGER_DRIVER
DRE_PINKY_FINGER_DRIVER
DRE_THUMB_FINGER_DRIVER
DRE_ROTATION_FINGER_DRIVER
DRE_ROTATION_THUMB_FINGER_DRIVER

◆ device_types_enum

enum device_types_enum
Enumerator
DTE_UNKNOW
DTE_CPU
DTE_SUB_CPU
DTE_DRIVER
DTE_MOTOR_DRIVER
DTE_MOTOR_DRIVER_MULTY_CH
DTE_SENSOR
DTE_EMG_1CH
DTE_EMG_2CH
DTE_EMG_MULTY_CH
DTE_OMG_SEGMENT
DTE_OMG_MULTY_CH
DTE_OMG_EMG_SEGMENT
DTE_OMG_EMG_MULTY_CH
DTE_STIMULATOR
DTE_HMI
DTE_DISPLAY
DTE_BUTTONS
DTE_SOUNDS
DTE_DISPLAY_BUTTONS
DTE_DISPLAY_SOUNDS
DTE_BUTTONS_SOUNDS
DTE_DISPLAY_BUTTONS_SOUNDS
DTE_TOUCH_DISPLAY
DTE_TOUCH_DISPLAY_SOUNDS
DTE_POWER
DTE_BMS
DTE_ACB
DTE_POWER_CONVERTER
DTE_POWER_ISOLATOR
DTE_POWER_COMBO
DTE_COMBO
DTE_OTHER

◆ Program_type_code_enum

enum Program_type_code_enum
Enumerator
PTE_UNKNOW
PTE_BOOTLOADER
PTE_MAIN_PROGRAM
