main_receiver.h File Reference

#include "UBI_SDK.h"
#include "TransportLevel/ports/a_port.h"
#include "TransportLevel/a_protocol.h"
#include "TransportLevel/a_protocol_struct.h"
#include "stdint.h"
#include "stdbool.h"

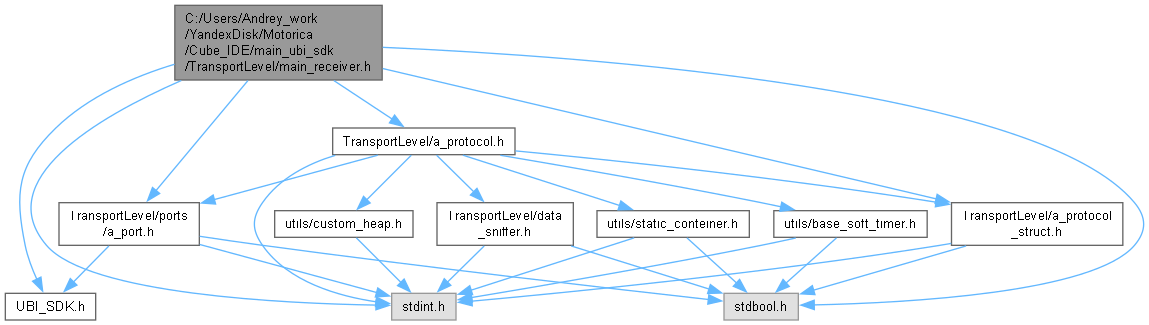

Include dependency graph for main_receiver.h:

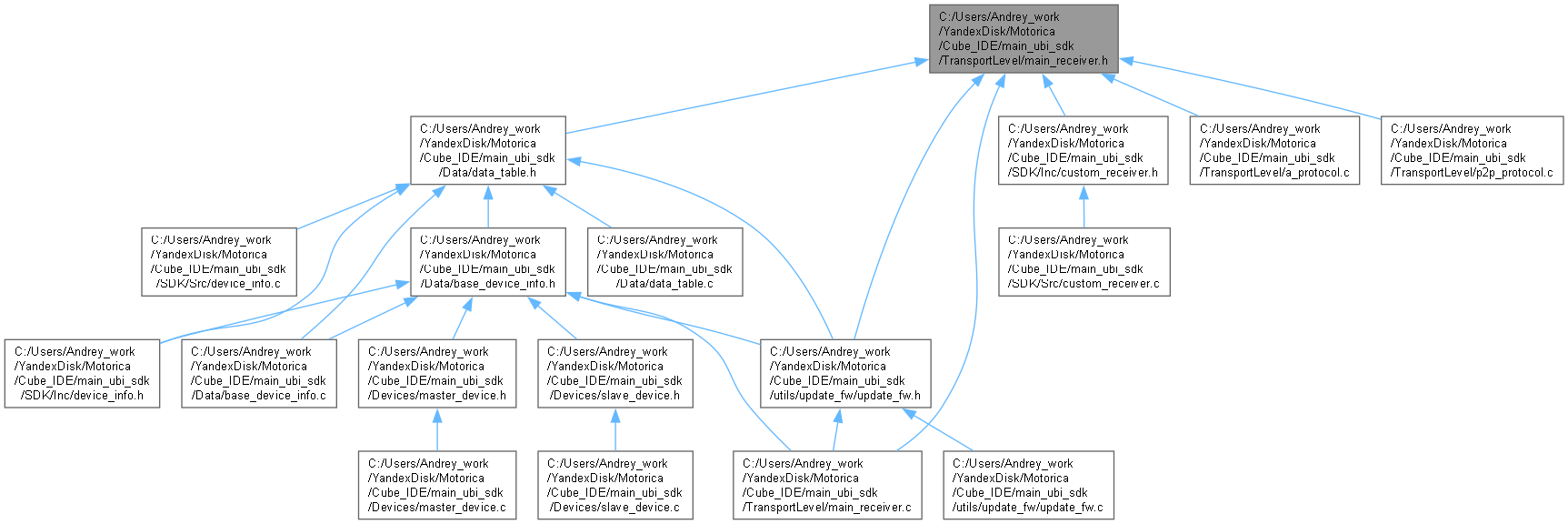

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	command_selector_struct
struct	collect_header_struct

Macros
#define	COLLECT_HEADER_SIZE   100

Typedefs
typedef bool(*	custom_receiver_callback) (uint8_t *Buf, uint16_t size, ports_enum port)
typedef bool(*	custom_command_selector_callback) (command_selector_struct command)
typedef void(*	device_custom_receiver_callback) (ubi4_bus_protocol_obj_struct *protocol_str, protocol_receive_struct receive_str)

Enumerations
enum	Command_enum {   DEVICE_INFORMATION = 1 , DATA_MANAGER = 2 , WRITE_FW_COMMAND = 3 , DEVICE_ACCESS_COMMAND = 4 ,   ECHO_COMMAND = 5 , SUB_DEVICE_MANAGER = 6 , GET_DEVICE_STATUS = 7 , DATA_TRANSFER_SETTINGS = 8 ,   COMPLEX_PARAMETER_TRANSFER = 9 , POWER_CONTROL = 10 , PROTOCOL_PING = 11 }
	Список команд Device Access. More...
enum	DevicesManagerCommand_enum { GET_ALL_SUB_DEVICE = 1 , ADD_SUB_DEVICE = 2 , REMOVE_SUB_DEVICE = 3 }
	Список команд Sub Device Manager. More...
enum	DataManagerCommand_enum {   READ_AVAILABLE_SLOTS = 1 , WRITE_SLOT = 2 , READ_DATA = 3 , WRITE_DATA = 4 ,   RESET_TO_FACTORY = 5 , SAVE_DATA = 6 , READ_SLOT = 7 , WRITE_DATA_PART = 8 ,   READ_DATA_PART = 9 }
	Список команд Data Manager. More...
enum	DeviceInformationCommand_enum {   INICIALIZE_INFORMATION = 1 , READ_DEVICE_PARAMETERS = 2 , READ_DEVICE_ADDITIONAL_PARAMETER = 3 , READ_DEVICE_ADDITIONAL_PARAMETER_SIZE = 16 ,   READ_SUB_DEVICES_FIRST_INFO = 4 , READ_SUB_DEVICE_INFO = 5 , READ_SUB_DEVICE_PARAMETERS = 6 , READ_SUB_DEVICE_ADDITIONAL_PARAMETER = 7 ,   READ_SUB_DEVICE_ADDITIONAL_PARAMETER_SIZE = 17 , SUB_DEVICE_PARAMETER_INIT_READ = 8 , SUB_DEVICE_PARAMETER_INIT_WRITE = 9 , GET_SERIAL_NUMBER = 10 ,   SET_SERIAL_NUMBER = 11 , GET_DEVICE_NAME = 12 , SET_DEVICE_NAME = 13 , GET_DEVICE_ROLE = 14 ,   SET_DEVICE_ROLE = 15 }
	Список команд Device Information. More...
enum	DataTransferSetting_enum {   DTSE_START_PARAMETER_STREAM = 1 , DTSE_STOP_PARAMETER_STREAM = 2 , DTSE_PROTOCOL_PREAMBLE = 3 , DTSE_ADD_PARAMETER_STREAM_FILTER = 4 ,   DTSE_ADD_PARAMETER_IN_EXTERNAL_STREAM = 5 }
	Список команд Data Transfer Settings. More...
enum	DataTransferSettingsCommand_enum { SET_BRIGE_MODE = 1 }
	Список команд Data Transfer Settings Command. More...

Functions
void	DeviceMainReceiver (ubi4_bus_protocol_obj_struct *protocol, protocol_receive_struct receive_str)
	Функция разбора принятной команды
void	MainReceiver (uint8_t *Buf, uint16_t size, ports_enum port)
void	CommandSelector (command_selector_struct command)
uint8_t	registr_header (bool brige, bool request_answer, uint8_t transmitter_address, uint8_t package_id, uint8_t command, ports_enum port)
collect_header_struct *	find_first_header (bool brige, uint8_t address, uint8_t command)
void	set_custom_main_receiver (custom_receiver_callback custom_receiver)
void	set_custom_command_selector (custom_command_selector_callback custom_selector)
void	set_device_custom_main_receiver (device_custom_receiver_callback custom_receiver)

Variables
collect_header_struct	header_arr [COLLECT_HEADER_SIZE]
