update_fw.h File Reference

#include "UBI_SDK.h"
#include "TransportLevel/main_receiver.h"
#include "stdint.h"
#include "string.h"
#include "stdbool.h"
#include "Data/data_table.h"
#include "Data/device_info_structs.h"
#include "Data/base_parameter.h"
#include "Devices/enum_discription.h"
#include "Drivers/base_memory_driver.h"
#include "TransportLevel/a_protocol_struct.h"
#include "Data/base_device_info.h"
#include "Data/data_table_structs.h"
#include "Data/data_verification.h"
#include "TransportLevel/p2p_protocol.h"

Include dependency graph for update_fw.h:

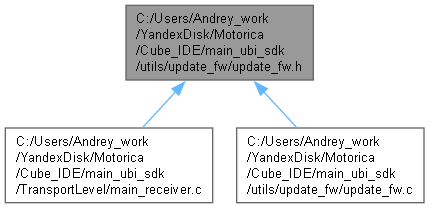

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	FW_info_struct
struct	FW_up_load_atribute

Macros
#define	IN_MAIN_APP_STATUS   0x01
#define	IN_BOOTLOADER_STATUS   0x02
#define	BAD_CRC_FIRMWARE   0x1E
#define	GOOD_CRC_FIRMWARE   0x2E
#define	BAD_COMPARE   0x00
#define	GOOD_COMPARE   0x01
#define	SIZE_BUFF_FOR_BOOT   1024
#define	SIZE_FW_INFO_STRUCT   10
#define	BEGIN_CALCULATE_CRC   0x01
#define	END_CALCULATE_CRC   0x00

Enumerations
enum	update_fw_state_enum {   GET_RUN_PROGRAM_TYPE = 1 , JUMP_TO_BOOTLOADER , CHECK_NEW_FW , PRELOAD_INFO ,   LOAD_NEW_FW , GET_BOOTLOADER_STATUS , CALCULATE_CRC , COMPLITE_CRC ,   GET_BOOTLOADER_INFO , CHECK_NEW_BOOTLOADER , LOAD_NEW_BOOTLOADER , GET_UP_LOAD_ATRIBUTE ,   START_SYSTEM_UPDATE , FINISH_SYSTEM_UPDATE }
enum	state_process_bootloader {   BOOTLOADER_IDLE =1 , PROCESSING_CLER , DONE_CLEAR , BOOTLOADER_PRELOAD_STATE ,   BOOTLOADER_CONTINUE_WRITE_FW , BOOTLOADER_CHECK_INFO_FW , PROCESSING_CULCULATE_CRC , DONE_CALCULATE_CRC }
enum	update_fw_program_type_enum { BOOTLOADER = 1 , MAIN_PROGRAM }

Functions
void	Update_FW_Receive (base_device_information_struct *deviceInfo, ubi4_bus_protocol_obj_struct *protocol_str, protocol_receive_struct receive_str)
	A function that determines which command has arrived and which state needs to be switched to.
void	JumpToProgramCommand (uint32_t address_to_jump)
	The function goes to the received address.
void	Init_Need_Struct_For_FW (base_BootloaderInfo_struct *base_boot, base_FWInfo_struct *base_fw, base_BoardInfo_struct *base_board)
	A function for initializing "Bootloader_struct", "FW_struct" and "Board_struct" from flash.
uint8_t	Compare_Data (void)
	A function for verifying the firmware.

Macro Definition Documentation

BAD_COMPARE

#define BAD_COMPARE   0x00

BAD_CRC_FIRMWARE

#define BAD_CRC_FIRMWARE   0x1E

BEGIN_CALCULATE_CRC

#define BEGIN_CALCULATE_CRC   0x01

END_CALCULATE_CRC

#define END_CALCULATE_CRC   0x00

GOOD_COMPARE

#define GOOD_COMPARE   0x01

GOOD_CRC_FIRMWARE

#define GOOD_CRC_FIRMWARE   0x2E

IN_BOOTLOADER_STATUS

#define IN_BOOTLOADER_STATUS   0x02

IN_MAIN_APP_STATUS

#define IN_MAIN_APP_STATUS   0x01

SIZE_BUFF_FOR_BOOT

#define SIZE_BUFF_FOR_BOOT   1024

SIZE_FW_INFO_STRUCT

#define SIZE_FW_INFO_STRUCT   10

Enumeration Type Documentation

state_process_bootloader

enum state_process_bootloader

Enumerator
BOOTLOADER_IDLE
PROCESSING_CLER
DONE_CLEAR
BOOTLOADER_PRELOAD_STATE
BOOTLOADER_CONTINUE_WRITE_FW
BOOTLOADER_CHECK_INFO_FW
PROCESSING_CULCULATE_CRC
DONE_CALCULATE_CRC

update_fw_program_type_enum

enum update_fw_program_type_enum

Enumerator
BOOTLOADER
MAIN_PROGRAM

update_fw_state_enum

enum update_fw_state_enum

Enumerator
GET_RUN_PROGRAM_TYPE
JUMP_TO_BOOTLOADER
CHECK_NEW_FW
PRELOAD_INFO
LOAD_NEW_FW
GET_BOOTLOADER_STATUS
CALCULATE_CRC
COMPLITE_CRC
GET_BOOTLOADER_INFO
CHECK_NEW_BOOTLOADER
LOAD_NEW_BOOTLOADER
GET_UP_LOAD_ATRIBUTE
START_SYSTEM_UPDATE
FINISH_SYSTEM_UPDATE

Function Documentation

Compare_Data()

uint8_t Compare_Data

(

void

)

A function for verifying the firmware.

Parameters

Nothing.

Returns

1 - if the firmware is correct. 0 - in case of a firmware mismatch.

Available to call in any module.

Here is the caller graph for this function:

Init_Need_Struct_For_FW()

void Init_Need_Struct_For_FW	(	base_BootloaderInfo_struct *	base_boot,
		base_FWInfo_struct *	base_fw,
		base_BoardInfo_struct *	base_board )

A function for initializing "Bootloader_struct", "FW_struct" and "Board_struct" from flash.

Parameters

base_boot

- a pointer to a structure containing information about the loader program itself. base_fw - a pointer to a structure containing information about the firmware received from the master device. base_board - a pointer to a structure containing information about the board itself, which is necessary for firmware verification.

Returns

Nothing.

Available to call in any module.

JumpToProgramCommand()

void JumpToProgramCommand

(

uint32_t

address_to_jump

)

The function goes to the received address.

Parameters

address_to_jump

- The program's transition address.

Returns

Nothing.

Update_FW_Receive()

void Update_FW_Receive	(	base_device_information_struct *	deviceInfo,
		ubi4_bus_protocol_obj_struct *	protocol_str,
		protocol_receive_struct	receive_str )

A function that determines which command has arrived and which state needs to be switched to.

Parameters

deviceInfo

- a pointer to a structure containing information about the device. protocol_str - a pointer to a structure for communication. receive_str - a structure containing information about the received data.

Returns

Nothing.

The first byte of the received buffer is the status. Takes the value from "update_fw_state_enum". Available for calling in other libraries.

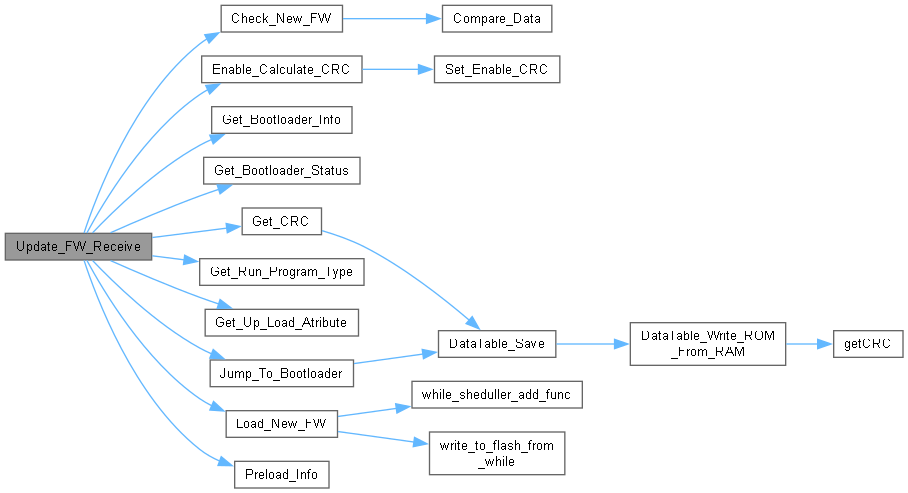

Here is the call graph for this function:

Here is the caller graph for this function:
