motor_controller_h_bridge_t Struct Reference

#include <motor_controller_h_bridge.h>

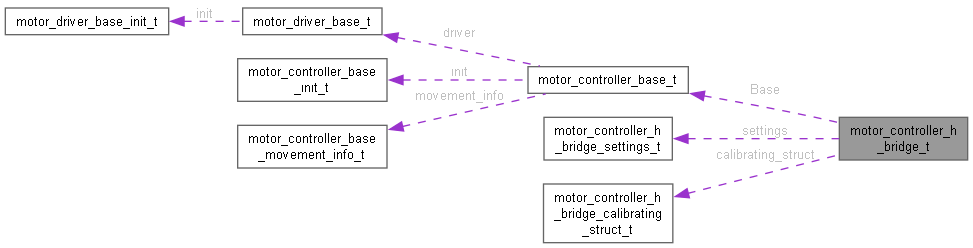

Collaboration diagram for motor_controller_h_bridge_t:
Collaboration graph
[legend]

Data Fields

motor_controller_base_t Base

drive_mode_enum mode

motor_controller_h_bridge_settings_t * settings

motor_controller_h_bridge_calibrating_struct_t * calibrating_struct

uint32_t motor_cycles_1ms

uint32_t motor_driver_cycles_1ms

int startup_timer_instance

int timeout_timer_instance

int brake_temer_instance

int start_delay_timer_instance

MotorSelfFuncWithReason_t StopCallback


Field Documentation

◆ Base

motor_controller_base_t Base

◆ brake_temer_instance

int brake_temer_instance

◆ calibrating_struct

motor_controller_h_bridge_calibrating_struct_t* calibrating_struct

◆ mode

drive_mode_enum mode

◆ motor_cycles_1ms

uint32_t motor_cycles_1ms

◆ motor_driver_cycles_1ms

uint32_t motor_driver_cycles_1ms

◆ settings

motor_controller_h_bridge_settings_t* settings

◆ start_delay_timer_instance

int start_delay_timer_instance

◆ startup_timer_instance

int startup_timer_instance

◆ StopCallback

MotorSelfFuncWithReason_t StopCallback

◆ timeout_timer_instance

int timeout_timer_instance
The documentation for this struct was generated from the following file:
